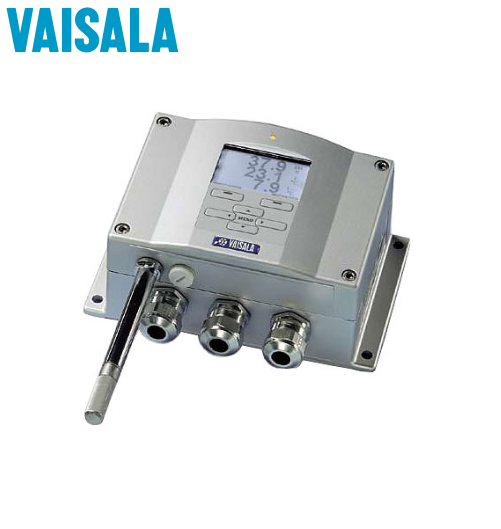

Cảm biến đo nhiệt độ và độ ẩm (Humidity and Temperature Transmitter) - Vaisala

Model: HMT330 3F0A121BCAC110A0AACBAA1

Basic specifications:

Transmitter type: HMT333 for general use
Probe cables: Probe 5m
Additional temperature probe: No Temperature Probe
Calculations: Code RH+T
Display: with Display
Power supply: Universal AC-Power (100...240VAC)
Signal output: Analog Output 4...20mA
Analog output signals for Ch1: Channel 1 RH (0...100%RH)
Analog output signals for Ch2: Channel 2 T (Range See Below)
Analog output signals for Ch3: No Analog Outputs
Analog output range for temperature: Temperature Range -40...+80C; Output units: Metric Units
Option for module slot 1: Relay Module
Option for module slot 2: No Module
Cable bushings: Sealed Cable Gland M20x1.5
Transmitter installation: No Installation Kit
Humidity sensor: General purpose HUMICAP180R
Sensor protection: PPS Grid with Steel Netting
Installation kit for probe: Duct Installation Kit For HMT333 and HMT337; Operating manual language: User´s Guide HMT330 English PC Accessories: No Accessories
Calibration / Calibration contract: No Calibration Contract ISO9001 Calibration; Additional Maintenance: No Maintenance Contract
