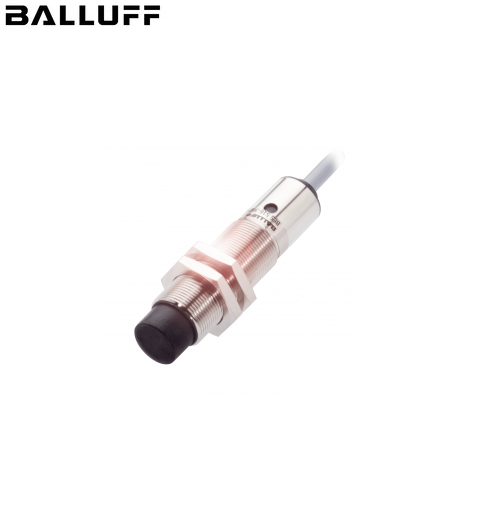

Model: BOS01UM - BOS 12M-PA-RF10-S4 ǀ Cảm biến quang

Model: BOS01UM - BOS 12M-PA-RF10-S4 ǀ Cảm biến quang

Features:

Series: 12M

Dimension: Ø 12 x 60 mm

Interface: PNP Normally open (NO)<br>PNP Normally closed (NC)

Principle of operation: Photoelectric sensor

Principle of optical operation: Diffuse sensor, Triangulation

Special optical feature: Fixed focus, Fixed background suppression

Beam characteristic: Focus, typical at 25 mm

Light type: LED Red light

Light spot size: Ø 2 mm at 25 mm

Range: 1...25 mm

Connection: Connector, M12x1-Male, 4-pin

Housing material: Brass, nickel plated

Material sensing surface: PMMA

Operating voltage Ub: 10...30 VDC
