Cảm biến từ (Magnetostrictive sensors)_Order code: BTL0F9A BTL5-E17-M0175-R-S32

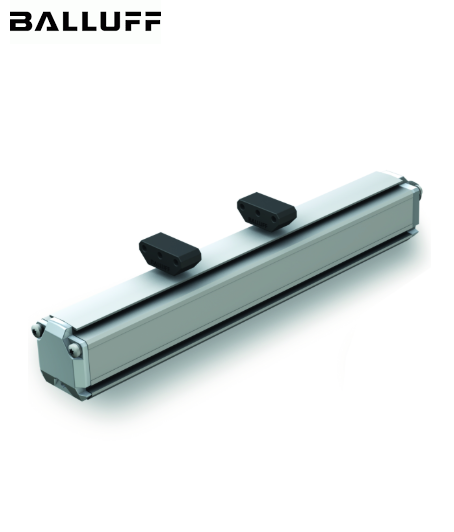

Cảm biến từ (Magnetostrictive sensors) - Balluff

Order code: BTL0F9A BTL5-E17-M0175-R-S32

Key features:

Style: Profile series

Mounting: Mounting clamps

Housing material: Aluminum

Magnets, number max.: 1

Connection: Connector, M16x0.75, 8-pin

Analog output: Analog, current 20…4 mA

Measuring range: 750 mm

Resolution: ≤ 0.2 µA

Non-linearity max.: ±0.02 %FS

Repeat accuracy: ≤ ± 0.2 µA

Operating voltage Ub: 20...28 VDC

Ambient temperature: -40...85 °C

Protection degree: IP67
