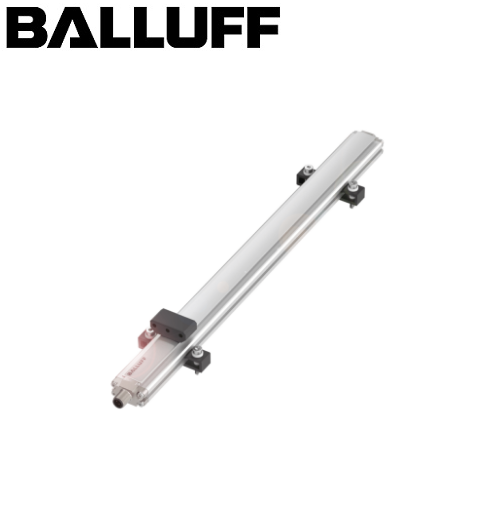

Cảm biến từ tính (Magnetostrictive sensor)_Model: BTL0W5H (BTL6-A500-M1016-PF-S115)

Cảm biến từ tính (Magnetostrictive sensor) - Balluff

Model: BTL0W5H (BTL6-A500-M1016-PF-S115)

Key features:

Style: Profile series

Mounting: Mounting clamps

Housing material: Aluminum

Magnets, number max.: 1

Connection: Connector, M12x1, 8-pin

Analog output: Analog, voltage 0…10 V

Measuring range: 1016 mm

Sampling frequency max.: 1000 Hz

Resolution: ≤ 350 µV

Non-linearity max.: ±0.04 %FS

Repeat accuracy: ± 0.002 % FS

Operating voltage Ub: 10...30 VDC

Ambient temperature: -25...70 °C

IP rating: IP67

Approval/Conformity: CE, cULus, EAC, WEEE
