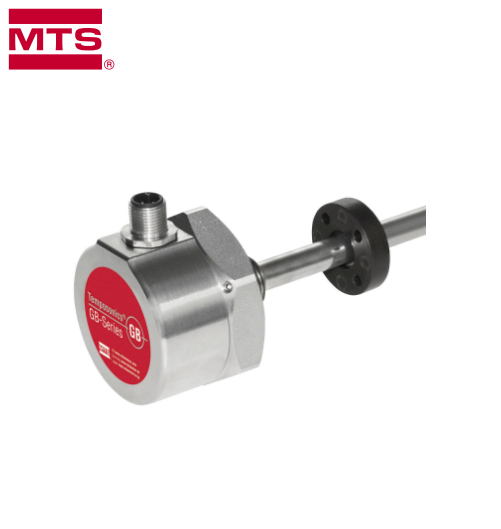

Cảm biến vị trí (Position sensor)
Xuất sứ: USA
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: MTS SENSORS VIET NAM
Mr. BảoCảm biến vị trí (Position sensor) - MTS Sensor
Model: GBM0300MD841S1G1102HC
Technical data:
Output
Voltage: 0…10 VDC and 10…0 VDC (min. load controller: > 5 kΩ)
Current: 4(0)…20 mA or 20…4(0) mA (min. / max. load: 0 / 500 Ω)
Programming: Programming of set points using optional accessories 1
Bluetooth® version: 2.1
Measured value: Position
Measurement parameters
Resolution: 16 bit (minimum 1 µm depending on stroke length)
Cycle time: ≤ 1200 mm: 0.5 ms ≤ 2400 mm: 1.0 ms > 2400 mm: 2.0 ms
Linearity: ≤ ±0.02 % F.S. (minimum ±60 µm) typically
Repeatability: ≤ ±0.005 % F.S. (minimum ±20 μm) typically
