Đầu nối (Plug connectors)-SICK

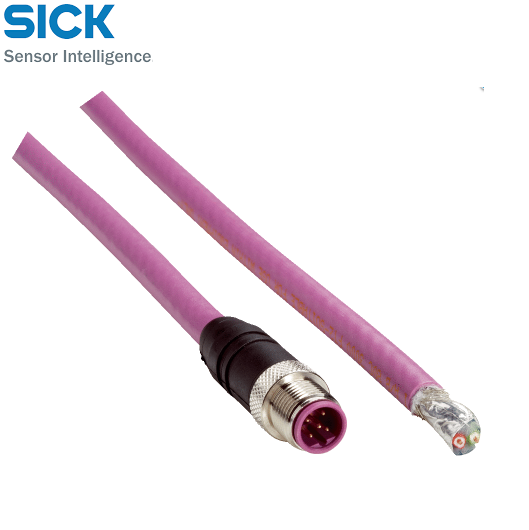

Type: STL-1205-G10MQ (Part no.: 6026007)

Thông tin kỹ thuật chung:

Accessory group Plug connectors and cables
Accessory family Connecting cables
Connection type head A Male connector, M12, 5-pin, straight, B-coded
Connection type head B Flying leads
Connector material TPU
Connector color Black
Locking nut material CuZn, nickel-plated brass
Cable 10 m, 2-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Violet
Cable diameter 7.6 mm
Conductor cross-section 2 x 0.34 mm²
Shielding Shielded
Bending radius
Flexible use > 10 x cable diameter
Stationary position > 5 x cable diameter
Bending cycles 1,000,000
Reference voltage ≤ 60 V
Current loading 4 A
Traversing speed 3 m/s
Travelling distance 5 m
Acceleration ≤ 5 m/s²
Signal type PROFIBUS DP
Special feature Twisted pair
Application

Zones with oils and lubricants

Drag chain operation

Note Wire shield Al-Pt film, overall shield C-screen tin-plated
Ambient operating temperature
Flexible use –25 °C ... +80 °C
Stationary position –50 °C ... +80 °C
Drag chain operation –25 °C ... +60 °C
Head –25 °C ... +85 °C
