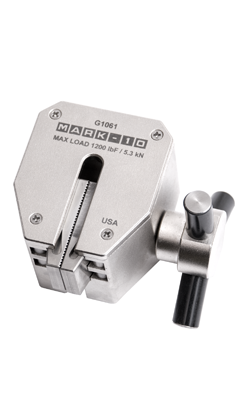

G1061-3_Wedge Grips

Xuất sứ: USA

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: MARK-10 VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Admin

support@ansgroup.asia

0911 47 22 55

0898788268

anhnghisonhcm

*) Mô tả:

These heavy duty self-tightening grips with a capacity range of 50 lbf to 2,000 lbF (250 N to 9 kN) are ideal for tensile testing of a wide range of materials. Select from rubber or serrated, hardened steel jaw faces. The jaws ride on rollers instead of sliding along the surface of the housing, as with conventional wedge grips. This unique design prevents jamming and improves gripping characteristics. The spring loaded jaws open with a highly ergonomic rack and pinion lever mechanism. The smooth and easy operation of the lever greatly reduces operator hand fatigue. Use these grips with a test stand and force gauge to create a complete testing system.

*) Đặt điểm

  • 3 capacities
  • Unique jam-free design
  • Fully enclosed
  • Hardened, serrated steel jaw faces, or rubber jaw faces for film and paper tensile testing applications
  • Thru slot for samples of unlimited width
  • Ergonomic handle
  • Weight:
    G1061-1: 0.5 lb [0.23 kg]
    G1061: 0.8 lb [0.36 kg]
    G1061-2, G1061-3: 0.9 lb [0.41 kg]
  • Jaw material / hardness:
    G1061, G1061-1, G1061-2: 416 SS / 55 RC
    G1061-3: Neoprene rubber, durometer = 70
