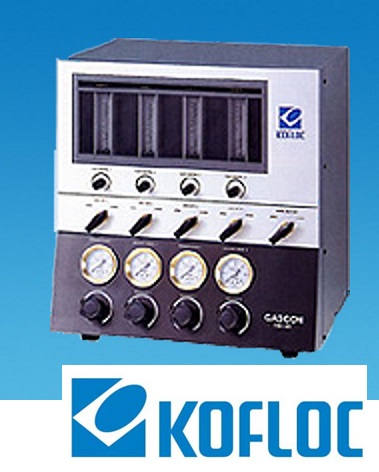

GM SERIES Máy trộn khí Kofloc Vietnam ANSdanang

Mixing MethodFlow Rate Ratio Mixing MethodFlow Rate Range10ml/min-20l/minApplicable GasesAir,N2,O2,He,Ar,CO2 and other kinds of gasAccuracyWithin +-2% FS for each elementMaterial of Gas Contact Part1.BRASS,NBR,Duracon2.SUS316,FPM,PCTFEOperating Temperature Range5°C-40°COperating Pressure Range49-588(kPa)Pressure Resistance784(kPa)Piping ConnectionStandard PT1/4 Female ScrewDimensionGM-2B 290W × 440H × 350D(mm)GM-3B 360W × 440H × 350D(mm)GM-4B 430W × 440H × 350D(mm)
