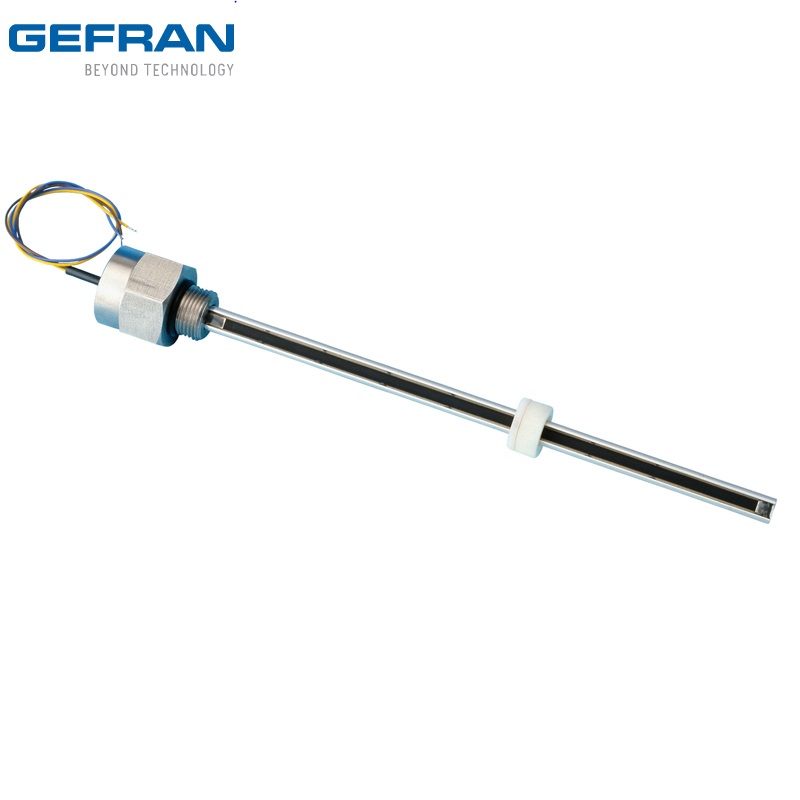

Description

  • 100 to 550 mm stroke
  • Mechanical fixing by internal or external flange
  • Independent linearity ±0,1%
  • Infinite resolution
  • Repeatability 0,01 mm
  • No variation of electrical signal outside theoreticalelectrical stroke
  • Displacement speed up to 1,5 m/s
  • Working temperature: -30...+100°C
  • Electrical connections:
    IC C: 6-pole connector
    IC F: 3 free wires (200 mm length)
  • Life duration: > 25x106meters or >100x106operations,whichever is the smaller (within C.E.U.)
  • Max.operating pressure 340 bar (5000 psi)
  • Suitable for use in explosive environments with presenceof gas (groups IIA, IIB, IIC) and combustible powders. Standards for simple device:ATEX CEI EN 50020 2003 - paragraph 5.4 a
