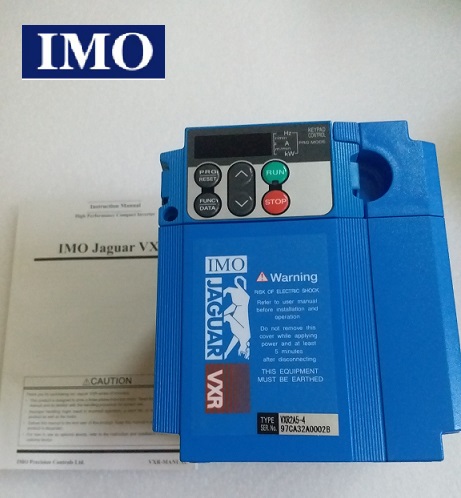

IMO Jaguar VXR Series AC Frequency Inverter for 0.75kW (1HP) 400V 3 Ph motor to 2.5A. Operates in VxF, Sensorless Flux Vector or full Closed-loop Flux Vector (with optional Encoder feedback card) control for a standard AC Induction motor

Size 2 - 110mm Wide x 1mm Deep x 130mm High. IP20
Weight: 1.2kg.

Overload - 150% x 60 seconds, 200% x 0.5 seconds.
Speed Control Range: 0-400Hz.
Braking - To 200 Ohm minimum external resistor (not supplied) - See the Resistor options linked below or use the 'Which Resistor' button on this page.

2 Analogue Inputs, 8 Digital Inputs, 1 Analogue Output, 1 Relay Contact Set. RS485, Profibus or Devicenet (optional).
Input Current - 3.1A.
Input Voltage - Three Phase 380-480Vac -15% +10% at 50-60Hz ±5%
EMC Filters - None.

Wall mount in clean environment or cubicle mount.
Rated 50°C Ambient.
Ventilation space in front - [Not Specified]
Ventilation space above and below - 100mm.
Ventilation space at sides - 0mm at 40°C Ambient, 10mm at 50° Ambient.
Mounting via 4 x 5mm diameter holes at rear on 118mm x 97mm centres.

Full part number is - VXR2A5-4.
