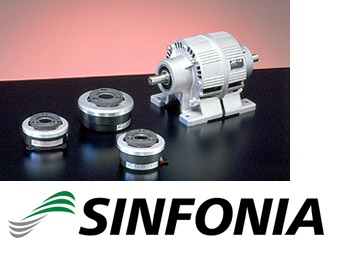

Type JEP-0.6
Clutch Brake
Built-In clutch/brake JCC-0.6F JB-0.6
Static friction torque Nm 6
Rated voltage DC-V 24
Power consumption W(at75℃) 8 8
Weight kg 2.6
(Note) The specification of built in clutch/brake is dedicated to JEP.
Unit:mm





Diameter direction
A 105
B 40
C 63
D 105
E 30
F 69
G 9
H 115.5
Shaft direction
L 198
M 130
N 55
O 30
P 99
R 72.5
Z 7
Shaft edge
Q 25
QK 18
d 12
b 4
h 4
t 2.5
Power box
DMP-20/24A
High frequency
controller
EMP-20DB
CSM-55DB
CMPH-100/4HB
