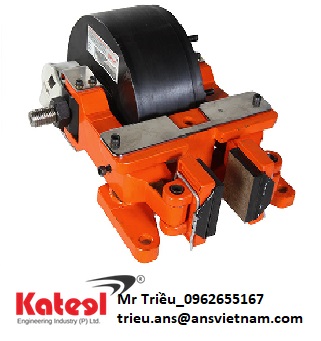

KBC-EM-250 – DISC BRAKES VIET NAM

DESCRIPTION

KBC-EM-250 is used with Brake Discs of thickness 15 to 25 MM.

This brake is suitable for medium to heavy duty holding and emergency stop applications. The design ensures long life with fully potted coils protecting against harsh environments. A wide range of coil voltage (24V DC to 150V D.C) is available.

WORKING PRINCIPLE

The thruster comprises of two electromagnetic coils i.e. a release coil (high current) and a holding coil (low current).Brake is released by energizing both coils simultaneously. The holding coil remains energized, thus maintaining the brake in the released condition.
