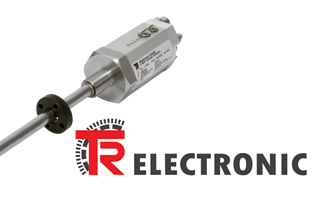

Supply
Supply voltage
24 VDC, -20…+10 %
Current consumption no load
<= 300 mA
Measuring principle
magnetostrictive
Measuring length, standard
50…4000 mm, in steps
Resolution
0.001 mm
Linearity deviation
± 0.10 mm <= 1500 mm

± 0.15 mm > 1500 mm
Reproducibility
0.005 mm
Hysteresis
0.02 mm <= 1500 mm

0.1 mm > 1500 mm
Characteristics - Validity
using original TR Magnets
Temperature coefficient
< 8 µm/°C <= 500 mm

< 15 ppm/°C FS > 500 mm
FS:
Full-Scale
Straight line velocity
no restrictions
Mounting position
no restrictions
Material - Measuring body
Cr/Ni - alloy
Rod end mounting
Option
Magnet
T4-M33

other on request
SERCOS III - Interface
SERCOS III
IEC 61784-2, IEC 61158
Physical Layer
Fast Ethernet, ISO/IEC 8802-3
Device profile
Encoder Profile
Communication cycle
>= 130 µs
Transmission rate
Specific value
100 MBit/s
Parameter/Function, changeable
Zero adustment

Counting direction
Type of parametrization
programmable
Programming - Tool
Fieldbus-Device

TR-Soft: TRWinProg
Cycle time internal, <= 0.50 m
0.50 ms
Cycle time internal, <= 1.00 m
1.00 ms
Cycle time internal, <= 2.00 m
1.50 ms
Cycle time internal, <= 3.00 m
2.00 ms
Cycle time internal, > 3.00 m
4.00 ms
