LMRF Series

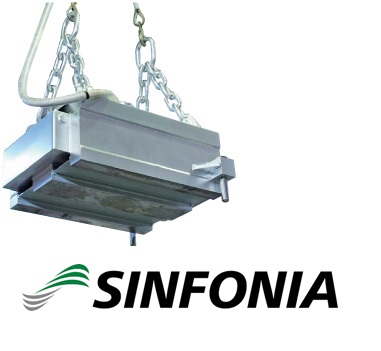

■For billet, ingot handling with movable magnetic poles
| Application | Normal temperature material handling (below 100℃) | ||||||
|---|---|---|---|---|---|---|---|
| Items / Type | LMRF- 10060 HA-1 |
LMRF- 14060 HA-1 |
LMRF- 16065 HA-2 |
LMRF- 19065 HA |
LMRF- 21070 HA |
||
| Dimensions | A | mm | 1000 | 1400 | 1600 | 1900 | 2100 |
| B | 600 | 600 | 650 | 650 | 700 | ||
| C | 1080 | 1000 | 1100 | 1200 | 1300 | ||
| D | 1200 | 1610 | 1800 | 2100 | 2300 | ||
| E |
200 |
200 | 200 | 250 | 250 | ||
| F | 125 | 125 | 125 | 175 | 175 | ||
| G | 38 | 38 | 38 | 50 | 50 | ||
| Weight | Approx. kg | 900 | 1200 | 1700 | 2000 | 2800 | |
| Current (before running) |
Approx. A | 20.5 | 29.5 | 38.6 | 45.5 | 45.5 | |
| Cold power consumption |
Approx. kW | 4.5 | 6.5 | 8.5 | 10 | 10 | |
| Lifting capacity (example : one unit used) Length (m) ×pieces |
110mm sq. | 4.0× 8 | 4.0×11 | 5.0×13 | 5.0×16 | 6.0×18 | |
| 130mm sq. | 3.4× 6 | 3.4× 9 | 4.3×11 | 4.3×14 | 5.0×15 | ||
| 150mm sq. | 3.0× 5 | 3.0× 8 | 3.7×10 | 3.7×12 | 4.5×13 | ||
| 200mm sq. | 2.2× 4 | 2.2× 6 | 2.7× 7 | 2.7× 9 | 3.3×10 | ||
| Application | High temperature material handling (below 600℃) | ||||||
| Items / Type | LMRF- 10060 HAS |
LMRF- 14060 HAS |
LMRF- 16065 HAS-2 |
LMRF- 19065 HAS-1 |
LMRF- 21070 HAS |
||
| Dimensions | A | mm | 1000 | 1400 | 1600 | 1900 | 2100 |
| B | 600 | 600 | 650 | 650 | 700 | ||
| C | 1000 | 1025 | 1200 | 1300 | 1400 | ||
| D | 1200 | 1610 | 1800 | 2100 | 2300 | ||
| E |
200 |
200 | 200 | 250 | 250 | ||
| F | 125 | 125 | 125 | 175 | 175 | ||
| G | 38 | 38 | 38 | 50 | 50 | ||
| Weight | Approx. kg | 1000 | 1300 | 1800 | 2100 | 3000 | |
| Current (before running) |
Approx. A | 15.9 | 25 | 30.5 | 36.4 | 36.4 | |
| Cold power consumption |
Approx. kW | 3.5 | 5.5 | 6.7 | 8.0 | 8.0 | |
| Lifting capacity (example : one unit used) Length (m) ×pieces |
110mm sq. | 4.0× 8 | 4.0×11 | 5.0×13 | 5.0×16 | 6.0×18 | |
| 130mm sq. | 3.4× 6 | 3.4× 9 | 4.3×11 | 4.3×14 | 5.0×15 | ||
| 150mm sq. | 3.0× 5 | 3.0× 8 | 3.7×10 | 3.7×12 | 4.5×13 | ||
| 200mm sq. | 2.2× 4 | 2.2× 6 | 2.7× 7 | 2.7× 9 | 3.3×10 | ||
For longer length billets
The LMR series are designed for the handling of longer length billets and blooms which has larger bents or warp. With more powerful magnetic force, the longer product can also be carried speedy, yet safe and stable. Carefully designed magnet body can optimaize deepest magnetic flux into carrying objects even with limited area for attraction on billets and bloom surface.
Rated voltage : 220V DC
Duty rating : E.D. 50%
LMR Series
■For longer billets, bloom handling
| Application | Normal temperature material handling (below 100℃) | ||||||
|---|---|---|---|---|---|---|---|
| Items / Type | LMR- 12595 HA |
LMR- 15095 HA |
LMR- 17080 HA |
LMR- 20090 HA |
LMR- 25090 HA |
||
| Dimensions | A | mm | 1250 | 1500 | 1700 | 2000 | 2500 |
| B | 950 | 950 | 800 | 900 | 900 | ||
| C | 1150 | 1250 | 1500 | 1700 | 1700 | ||
| D | 300 | 500 | 500 | 600 | 600 | ||
| E |
125 |
125 | 175 | 230 | 230 | ||
| F | 200 | 200 | 250 | 370 | 370 | ||
| G | 38 | 38 | 50 | 70 | 70 | ||
| Weight | Approx. kg | 2000 | 3700 | 2800 | 5500 | 6000 | |
| Current (before running) |
Approx. A | 41.0 | 45.5 | 45.5 | 68.2 | 68.2 | |
| Cold power consumption |
Approx. kW | 9.0 | 10.0 | 10.0 | 15.0 | 15.0 | |
| Lifting capacity (unit: mm) (example : two lifting magnets used) |
In the case of bloom |
4 pcs. of 256×295 ×12000 |
2 pcs. of 240×420 ×10000 |
4 pcs. of 240×320 ×10000 |
2 pcs. of 330×550 ×10000 |
3 pcs. of 330×550 ×10000 |
|
| In the case or beam bland |
2 pcs. of 570×300 ×10000 |
2 pcs. of 556×300 ×10000 |
2 pcs. of 540×300 ×10000 |
1 pcs. of 1200×400 ×10000 |
2 pcs. of 1200×400 ×10000 |
||
| Application | High temperature material handling (below 600℃) | ||||||
| Items / Type | LMR- 12595 HAS |
LMR- 15095 HAS-1 |
LMR- 17080 HAS |
LMR- 20090 HAS |
LMR- 25090 HAS |
||
| Dimensions | A | mm | 1250 | 1500 | 1700 | 2000 | 2500 |
| B | 950 | 950 | 800 | 900 | 900 | ||
| C | 1200 | 1250 | 1500 | 1700 | 1700 | ||
| D | 300 | 500 | 500 | 600 | 600 | ||
| E |
125 |
125 | 175 | 230 | 230 | ||
| F | 200 | 200 | 250 | 370 | 370 | ||
| G | 38 | 38 | 50 | 70 | 70 | ||
| Weight | Approx. kg | 2150 | 3800 | 3100 | 6000 | 6500 | |
| Current (before running) |
Approx. A | 34.1 | 53.6 | 34.1 | 59.0 | 59.0 | |
| Cold power consumption |
Approx. kW | 7.5 | 11.8 | 7.5 | 13.0 | 13.0 | |
| Lifting capacity (unit: mm) (example : two lifting magnets used) |
In the case of bloom |
4 pcs. of 256×295 ×12000 |
2 pcs. of 300×400 ×10500 |
4 pcs. of 240×320 ×10000 |
2 pcs. of 330×550 ×10000 |
3 pcs. of 330×550 ×10000 |
|
| In the case or beam bland |
2 pcs. of 570×300 ×10000 |
1 pcs. of 1120×410 ×10500 |
2 pcs. of 540×300 ×10000 |
1 pcs. of 1200×400 ×10000 |
2 pcs. of 1200×400 ×10000 |
||
