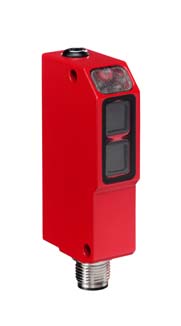

LS 95/2.8 SE-L.1 - Throughbeam photoelectric sensor transmitter

Xuất sứ: GERMANY

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: LEUZE VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Ms. Diệu

dieu.ans@ansvietnam.com

0902337066

0962678764

anhnghisonhcm

  • Basic data
    • Series95
    • Operating principleThroughbeam principle
    • Device typeTransmitter
  • Special design
    • Special designActivation input
  • Optical data
    • Operating range0 ... 12 m
    • Operating range limit0 ... 20 m
    • Light sourceLED, Infrared
  • Electrical data
    • Protective circuitPolarity reversal protection, Short circuit protected
    • Performance data
      • Supply voltage UB10 ... 30 V, DC
      • Residual ripple0 ... 15 %, From UB
      • Open-circuit current0 ... 35 mA
    • Inputs
      • Number of activation inputs1 Piece(s)
  • Connection
    • Connection 1
      • Type of connectionConnector
      • FunctionVoltage supply, Signal IN, Signal OUT
      • Thread sizeM12
      • MaterialStainless steel
      • No. of pins4 -pin
  • Mechanical data
    • Dimension (W x H x L)17 mm x 66 mm x 35 mm
    • Housing materialMetal, Zinc
    • Lens cover materialGlass
    • Net weight90 g
    • Type of fasteningThrough-hole mounting
  • Environmental data
    • Ambient temperature, operation-25 ... 60 °C
  • Certifications
    • Degree of protectionIP 67
    • Protection classII
    • Standards appliedIEC 60947-5-2
  • Classification
    • Customs tariff number85365019
    • eCl@ss 8.027270901
    • eCl@ss 9.027270901
    • ETIM 5.0EC002716
    • ETIM 6.0EC002716
