Bích Ngà For universal use – connects directly and simply to the drive system

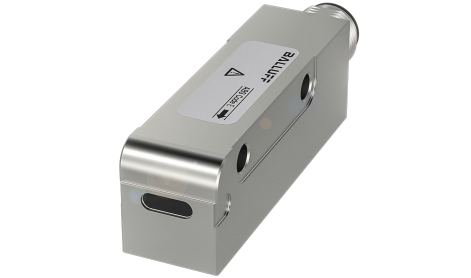

The BML SGA absolute magnetic encoder stands out in applications where absolute accuracy of position and end-of-travel is required. And since leaving and returning to the detection range of the magnetic tape is permitted, it provides a simple and economical solution for demanding applications in the fields of automation and machine tool building. The system is also simple to retrofit.
With its Drive-Cliq interface, the system can be perfectly integrated into Siemens controller environments. Siemens has certified the system accordingly. Plug-and-play installation makes incorporating it into the drive system easy. The controller automatically detects the sensor and its basic settings.
The system continuously checks the measurement quality, so that any mechanical position shift during operation is directly detected. Its automatic status monitoring detects signal quality. The function reserve can be evaluated in the controller.
Features
- Reliable: non-contact and wear-free measuring principle
- Universal: measuring lengths up to 48 m, high system accuracy to ±12 μm
- Time-saving: high read distance up to 1.3 mm makes installation easier
- Convenient: Status LED and diagnostics functions for reliable operation and quicker maintenance
- Easy to integrate: space-saving, compact form factor
ABSOLUTELINEAR MAGNETIC ENCODER SYSTEM |
 |
|
|
|
BML085L |
BML08MH |
|
Interface |
Drive-Cliq |
Drive-Cliq |
|
Additional features |
|
Temperature sensor input, PT1000 |
|
Resolution |
1 µm |
1 µm |
|
Measuring range max. |
48 m |
48 m |
|
IP rating |
IP67 |
IP67 |
|
Ambient temperature |
–30...+70 °C |
–30...+70 °C |
|
Approval/conformity |
CE, cURus, EAC |
CE, cURus, EAC |
|
Housing material |
Die-cast zinc, stainless steel |
Die-cast zinc, stainless steel |
|
Connection |
M12-male 8-pin |
M12-male, 12-pin |
| ACCESSORIES |  |
 |
 |
 |
|
|
BML04P4 |
BAM02YC |
BAM01N4 |
BAM021H |
|
Description |
Magnetic tape |
Mounting kit |
Guide rail |
Sliding carriage |
|
Length |
1 m* |
|
3 m* |
|
* Configurable during order process
CONNECTIVITY |
 |
|
|
|
BCC0L3W |
BCC0L3Y |
|
Cable |
PUR black, 5 m, drag chain compatible |
PUR black, 10 m, drag chain compatible |
|
For connection 1 |
M12 female, straight, 8-pole |
M12 female, straight, 8-pole |
|
For connection 2 |
RJ45 |
RJ45 |
