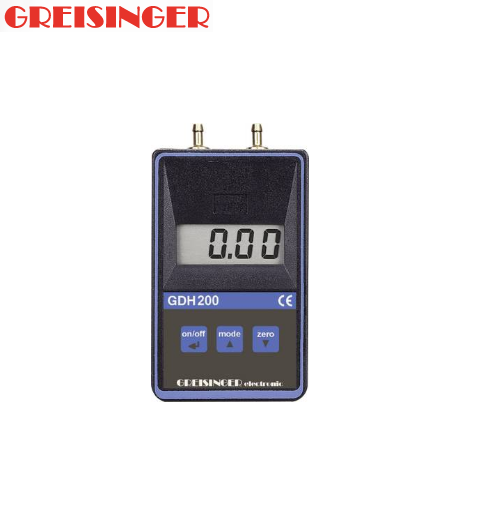

Máy đo chênh lệch áp suất

Xuất sứ: Germany

Nhà cung cấp: ANS Đà Nẵng

Hãng sản xuất: GHM GROUP VIET NAM

Liên hệ tư vấn

Bích Ngà

bichnga-sales@ansgroup.asia

0937 856 572

Thông tin kỹ thuật:

Power supply (details) 9 V battery
Pneumatic connection 2 pressure connections made out of nickel-platted brass for pressure tubing 6 x 1 mm (4 mm inner diameter), protrudes approx. 11 mm.
Reading range 0.00 - 19.99 or 20.0 - 199.9 mbar (hPa)
Print resolution 0.0001 bar
Basic accuracy 0.2 % (up to 200 mbar)
Excess pressure resistance 500 mbar
IP rating

 IP65
Weight 135 g
Height 30 mm
Length 106 mm
Width 67 mm
Reading range 0 - 0.1999 bar
Calibrated to

 Manufacturer's standards (no certificate)
Unit of measurement Air pressure
Accuracy 0.2 %
Reading range (max.) 0.1999 bar
Reading range (min.) 0 bar
Product type Pressure gauge
