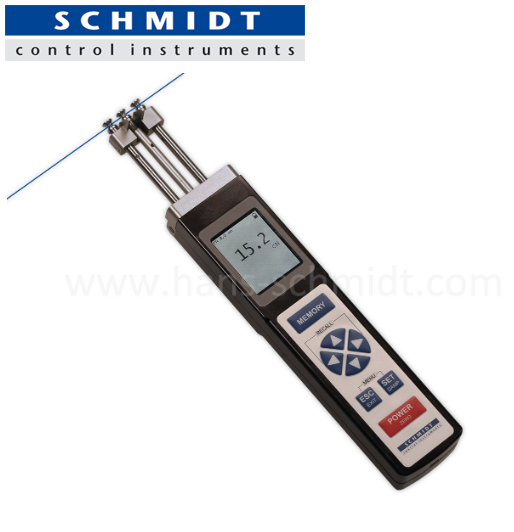

Máy đo lực căng (Tension meter) - Hans Schmidt/ Imada

Model: ETB-100

Specifications:

Calibration: According SCHMIDT factory procedure
Accuracy: ±1 % full scale ±1 digit or better (typical ±0.5 % full scale)
Measuring units: cN, g, N or lb, switchable
Overrange: Approx. 10 % full scale, without accuracy guarantee
Overload protection: 200 % full scale
Measuring principle: Strain gauge bridge
Measuring roller deflection: Max. 0.5 mm
Signal processing: Digital
Damping: Adjustable electronic damping, averaging
Sampling rate internal: approx. 1 kHz
Sampling rate: Max. 200 Hz (200 readings/sec)
Display: Colour-TFT 128 x 160
Display update rate: Approx. 2 times per second
Memory: Last, average, MAX and MIN
Temperature coefficient: Gain: less than ± 0.01% full scale/°C
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Auto power off: Approx. after 3 minutes of non-use
Power supply: LiPo accumulator (approx. 20 h continuous use, charging time approx. 3.5 h),
USB AC adapter 100…240 V AC with 4 adapters (EU/USA/UK/AUS-NZ)
Housing material: Aluminium
