Fireye Vietnam,Máy quét ngọn lửa InSight Series IV 95UVS4-1WINC Fireye

InSight Flame Scanners 95IR_95UV_95DS

The Fireye InSight® Type 95IR, 95UV, and 95DS flame scanners are microprocessor-based flame scanners utilizing solid-state infrared (IR), ultraviolet (UV) or dual (IR and UV) sensors.



InSight Flame Scanners 95IR 95UV 95DS

The Fireye InSight Type 95 flame scanners incorporate an internal flame relay with adjustable ON/OFF thresholds, thereby eliminating the need for a remote flame amplifier. All Fireye inSight scanner models are powered by 24 Vdc, have either a twelve-pin electrical quick disconnect or 10 ft. cable (“CG” models), and contain electronic self-checking (no mechanical shutter required). The scanners contain an eight-character alpha-numeric LED display and a four push-button keypad to enable the user to view operating parameters and select setpoints.

The following models of Insight I are effectively obsolete as of 2/5/2020.

Original Part Designation

Recommended Replacement Part

95UVS1-1 (all versions including E's)

95UVS4-1WINC

95UVS1-1CG (all versions including E's)

95UVS4-1WINC with associated cable

95IRS1-1 (all versions including E's)

95IRS4-1WINC

95IRS1-1CG (all versions including E's)

95IRS4-1WINC with associated cable

95UVS2-1 (all versions including E's)

95UVS4-1WINC

95UVS2-1CG (all versions including E's)

95UVS4-1WINC with associated cable

95IRS2-1 (all versions including E's)

95IRS4-1WINC

95IRS2-1CG (all versions including E's)

95IRS4-1WINC with associated cable

95UVS2-1CEX (all versions including E's)

95UVS4-1CEX

95IRS1-1CEX (all versions including E's)

95IRS4-1CEX



100% USA Origin

Fireye Vietnam

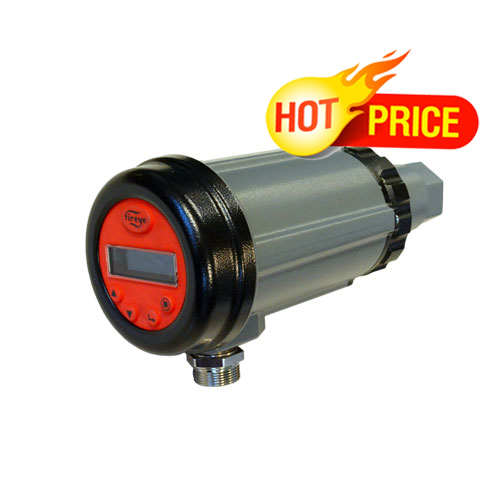

Code: 95UVS4-1WINC
 InSight Series IV Flame Scanner - Ultra-violet with single quick disconnect to connect to InSight I cable connector (59-497-xx).
 NEMA 4X, FM, UL/c Approved.
