Đại lý Inhamotor Vietnam, Máy thổi khí IHB-202 Inhamotor

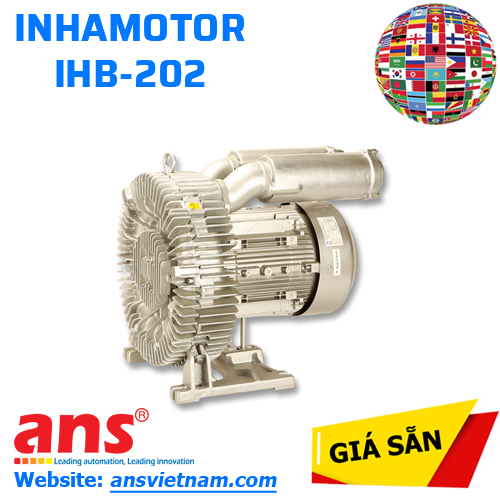

Máy thổi khí IHB-202 Inhamotor - Blower IHB-202 Inhamotor

Máy thổi khí IHB-202 Inhamotor

Blower IHB-202 Inhamotor

Tên thiết bị: Máy thổi khí (Blower)

Mã đặt hàng: IHB-202

Nhà sản xuất: Inhamotor (Korea)



Thông số kỹ thuật:

MODEL

IHB-202

IHB-302

IHB-402S

IHB-402

Áp suất
(mmAq)

50Hz

2,400

2,300

2,800

4,000

60Hz

2,500

3,000

2,800

4,000

Chân không
(mmAq)

50Hz

2,000

2,200

2.400

2,600

60Hz

2,000

2,200

2,800

3,000

Lưu lượng khí tối đa
(m3/min)

50Hz

1.4

1.4

2.5

2.5

60Hz

1.65

1.65

3.2

3.2

Công suất mô tơ (kw)

50Hz

0.75

1.1

1.5

2.2

60Hz

0.89

1.5

1.75

2.55

Điện áp (V)

50Hz

200-220/380-415

-

-

-

60Hz

220-240/380-440

-

-

-

Cường độ dòng điện (A)

50Hz

4.4/2.25

5.7/3.3

6.3/3.6

9.8/5.7

60Hz

4.2/2.4

5.9/3.4

6.7/3.9

9.5/5.5

Curve No

50Hz

45H

46H

54H

55H

60Hz

40H

41H

49H

50H

Trọng lượng (kg)

17.5

19.5

35

37.5



100% SINGAPORE Origin

BARTEC Vietnam

SWITCH, NOT PADLOCKABLE SELECTOR SWITCH, 1/2"" ISO-228
 PART: EFI-RL
 MAKER: BARTEC

100% SINGAPORE Origin

BARTEC Vietnam

PILOT LED LAMP, RED COLOUR, YELLOW COLOUR WITH LED LAMP 230VAC/DC, ISO-M25
 PART: EFL2#RO
 MAKER: BARTEC

100% SINGAPORE Origin

BARTEC Vietnam

LAMP, PILOT LED YELLOW COLOUR, WITH LED LAMP 230VAC/DC,
 PART: EFL2#GI
MAKER: BARTEC

100% EU Origin

Baumer Vietnam

Code: 11075638
Description: AMG81 P29 Z0
Absolute encoders

100% EU Origin

E+H Vietnam

Code: DTT31-A1A111AEX1AB
Description: Flow switch sensing

100% USA
Origin

GE
Vietnam

Model: IC694ALG223-**
Module
(**= mã số lô)
Note : recheck stock khi order

100% Canada Origin

GREYSTONE Vietnam

Model: CMD5B1000
Wall/Surface Mount Carbon Monoxide Detector, No Relay, No Communicaon

100% Canada Origin

GREYSTONE Vietnam

Model: DSD240
4 wire photoelectric duct mount smoke detector, 240 Vac

100% Canada Origin

GREYSTONE Vietnam

Model: DST-3.0
Metal sampling tube for duct widths between 610mm - 1200mm (24" - 48")

100% Canada Origin

GREYSTONE Vietnam

Model: GFS-80U-NPIKG
 Air D/P Switch, 20-300 Pa (0.08" to 1.20" w.c.)adj. range, 1/2"NPT connecon, UL/CE, c/w install kit

100% Canada Origin

GREYSTONE Vietnam

Model: TSAPA20D
Temperature Sensor, All Purpose Duct/Immersion, ABS enclosure with hinged and gasketed cover, 20,000 Ohm, NTC thermistor, +/-0.2 C, 200 mm (8'')

100% Germany / Japan Origin

Imada / Hans-schmidt Vietnam

Model: FSA-1KE-1000N
Force-Displacement Measuring Systems

100% Korea Origin

Inhamotor Vietnam

Model: IHB-1000
Blower

100% EU/US
Origin

Max Air Vietnam

Type: MT30-3DAD31S100
MT30 S3 90° F05/F07 Q.17 1/4" BLACK
Max-Air R&P aluminum pneumatic actuator MT30 spring return SR3X3
FC 0÷90° ± 10°, 1/4"G, ISO F05/F07 DSQ 17 mm, clockwise closing,
black end caps, temp.: -20+80°C, nickel plated carbon steel pinion

100% EU/US
Origin

Max Air Vietnam

Type: MT17-0DAC31S100
MT17 DA 90° F05/F07 Q.14 1/4' BLACK
Max-Air R&P aluminum pneumatic actuator MT17 double acting 0÷90°,
1/4"G, ISO F05/F07 DSQ 14 mm, standard rotation , black end caps,
temp.: -20+80°C, nickel plated carbon steel pinion.

100% EU/US
Origin

Max Air Vietnam

Type: MT35-3EAE31S100
MT35 S3 90° F07/F10 Q.22 1/4" BLACK
Max-Air R&P aluminum pneumatic actuator MT35 spring return SR3X3
FC 0÷90° ± 10°, 1/4"G, ISO F07/F10 DSQ 22 mm, clockwise closing,
black end caps, temp.: -20+80°C, nickel plated carbon steel pinion

100% EU/US
Origin

Max Air Vietnam

Type: MT25-0DAD31S100
MT25 DA 90° F05/F07 Q.17 1/4' BLACK
Max-Air R&P aluminum pneumatic actuator MT25 double acting 0÷90° ±
10°, 1/4"G, ISO F05/F07 DSQ 17 mm, standard rotation , black end
caps, temp.: -20+80°C, nickel plated carbon steel pinion

100% EU/US
Origin

Max Air Vietnam

Type: MT40-0EAE31S100
MT40 DA 90° F07/F10 Q.22 1/4' BLACK
Max-Air R&P aluminum pneumatic actuator MT40 double acting 0÷90° ±
10°, 1/4"G, ISO F07/F10 DSQ 22 mm, standard rotation , black end
caps, temp.: -20+80°C, nickel plated carbon steel pinion

100% EU/US
Origin

Max Air Vietnam

Type: MT50-3GAF31S100
MT50 S3 90° F10/F12 Q.27 1/4' BLACK
Max-Air R&P aluminum pneumatic actuator MT50 spring return SR3X3
FC 0÷90° ± 10°, 1/4"G, ISO F10/F12 DSQ 27 mm, clockwise closing,
black end caps, temp.: -20+80°C, nickel plated carbon steel pinion.

100% EU/US
Origin

Max Air Vietnam

Type: MT50-0GAF31S100
MT50 DA 90° F10/F12 Q.27 1/4" BLACK
Max-Air R&P aluminum pneumatic actuator MT50 double acting 0÷90° ±
10°, 1/4"G, ISO F10/F12 DSQ 27 mm, standard rotation , black end
caps, temp.: -20+80°C, nickel plated carbon steel pinion.

100% EU/US
Origin

Max Air Vietnam

Type: MT60-3GAG31S100
MT60 S3 90° F10/F12 Q.36 1/4' BLACK
Max-Air R&P aluminum pneumatic actuator MT60 spring return SR3X3
FC 0÷90° ± 10°, 1/4"G, ISO F10/F12 DSQ 36 mm, clockwise closing,
black end caps, temp.: -20+80°C, nickel plated carbon steel pinion

100% EU/US
Origin

Max Air Vietnam

Type: MT40-3EAE31S100
MT40 S3 90° F07/F10 Q.22 1/4' BLACK
Max-Air R&P aluminum pneumatic actuator MT40 spring return SR3X3
FC 0÷90° ± 10°, 1/4"G, ISO F07/F10 DSQ 22 mm, clockwise closing,
black end caps, temp.: -20+80°C, nickel plated carbon steel pinion

100% EU/US
Origin

Max Air Vietnam

Type: MT40-3EAE34S100
MT40 S3 90° F07/F10 Q.22mm 1/4" BLACK FO
Max-Air R&P aluminum pneumatic actuator MT40 spring return SR3X3
FO 0÷90° ± 10°, 1/4"G, ISO F07/F10 DSQ 22 mm, counterclockwise
opening, black end caps, temp.: -20+80°C, nickel plated carbon steel
pinion

100% EU/US
Origin

Max Air Vietnam

Type: MT30-0DAD31S100
MT30 DA 90° F05/F07 Q.17 1/4' BLACK
Max-Air R&P aluminum pneumatic actuator MT30 double acting 0÷90° ±
10°, 1/4"G, ISO F05/F07 DSQ 17 mm, standard rotation , black end
caps, temp.: -20+80°C, nickel plated carbon steel pinion

100% EU/US
Origin

Max Air Vietnam

Type: MT55-0GAF31S100
MT55 DA 90° F10/F12 Q.27 1/4' BLACK
Max-Air R&P aluminum pneumatic actuator MT55 double acting 0÷90° ±
10°, 1/4"G, ISO F10/F12 DSQ 27 mm, standard rotation , black end
caps, temp.: -20+80°C, nickel plated carbon steel pinion.

100% UK Origin

MEDC Vietnam

Model: SM87HXBAB024RY1B1RYNR
Xenon Beacon (5 Joule), 60FPM, IP66 & IP67, Material: Marine Grade Alloy (Must be chosen for UL), Certification: ATEX Certified, Ex II 2 GD, Ex d IIC T5/T6 Gb, Ex tb IIIC T65°C/T80°C/T95°C Db, SIL2 approval, Voltage: 24VDC, Lens Colour: Red, Lens Guard: Yes, Cable Entries: 1 x M20 Bottom, 1 x M20 Righ Hand Side, Labels: Yes (Please specify details with order), Initiate Option: None, Finish: Red.

100% Japan Origin

Nippon Valve Vietnam

Model: AM2SR105UUT-015
 Valve AC100V 15A

100% Korea Origin

Reeltec Vietnam

Model: CWR4420P-X
Cable Reel
4.0sq x 4C x 20MR
Spring Rewind (Non-Stop)
Reel Structure: Carbon Steel with Powder Coat Finish
With PNCT Cable

100% EU
Origin

Siemens
Vietnam

Model : 6ES7331-7RD00-0AB0
Module

100% EU
Origin

Siemens
Vietnam

Model : 6ES7322-1BF01-0AA0
Module ; Note : STOCK KHO ANS ( 1PC)

100% EU
Origin

Siemens
Vietnam

Model : 6ES7315-2EH14-0AB0
CPU

100% EU
Origin

Siemens
Vietnam

Model : 6ES7370-0AA01-0AA0
Module

100% US Origin

United Electric Vietnam

Model: H100-703
Pressure Switch Sensing



Liên hệ & Báo giá chi tiết:

SALE ANS Việt Nam:

  thuyho@anssgroup.asia

 Trực tiếp Zalo: 0783698645



================================================================= ===
