Overview

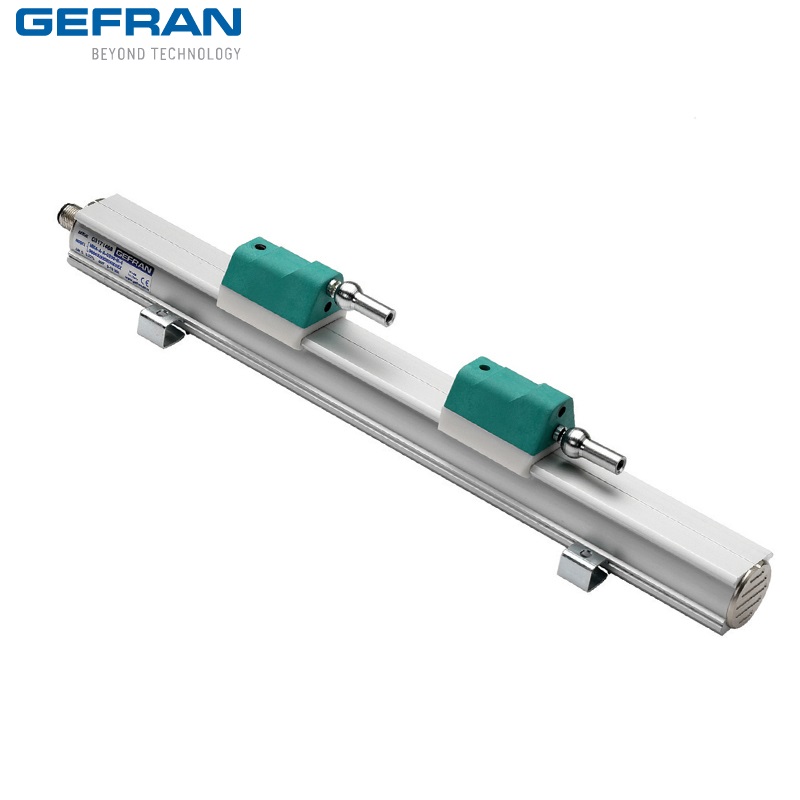

Contactless linear position transducer with magnetostrictive technology.

The absence of electrical contact on the cursor eliminates all wear and guarantees almost unlimited life.

The MK4 CANopen integrates a microprocessor to process the measurement and to diagnose the transducer.

The CAN field bus communication system provides fast and safe transmission.

The use of CANopen DS-301 protocol and Device Profile DS-406 provides quick and easy integration of the transducer in the control and automation system.

Description

  • Absolute measurement of position and speed
  • Possibility of one or two cursors simultaneously
  • Local intelligence
  • Interface: CANopen DS-301 V4.01 Device Profile DS-406 V2.0
  • Strokes from 50 to 4000 mm
  • Position resolution up to 2μm
  • Speed resolution up to 0,01mm/sec
  • Linearity error 0.02%
  • Repeatability error 0.01mm
  • Resistance to vibrations (DIN IEC68T2/6 12g)
  • IP67 protection
