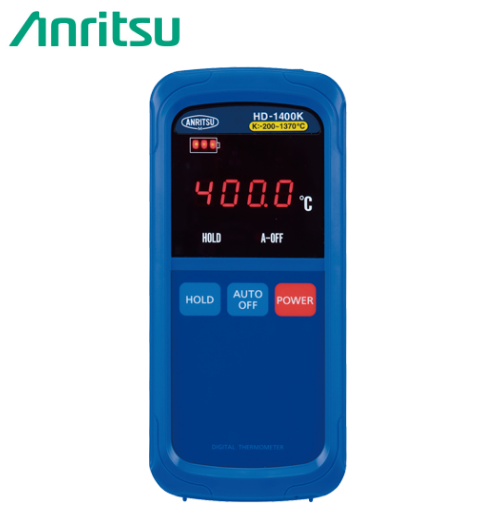

Nhiệt kế điện tử cầm tay (Handheld Thermometer)_Model: HD-1400E

Model

HD-1400

Display

LED

Waterproof specifications

Equivalent to IPX5

Input connector

ASP

Input type

Thermocouple Input: Type E, K

Channel

1ch

Signal source resistance

MAX.500ohm

Measurement Range

1°C Resolution

E

-200 to 800°C

K

-200 to 1370°C

0.1°C Resolution

E

-104.9 to 504.9°C

(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)

K

-104.9 to 504.9°C

(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)

Measurement Accuracy

1°C Resolution

0°C to

± (0.1% of reading +1°C)

to 0°C

± (0.5% of reading +1°C)

0.1°C Resolution

0°C to

± (0.05% of reading + 0.2°C)

to 0°C

±0.5°C

Reference junction compensation accuracy

±0.2°C at 25°C±10°C

Temperature Coefficient

±0.01% of F/S per °C (F/S : full scale)

Operation Environment

0 to 40°C, 0 to 80%RH (Non condensing)

32 to 104°F, 0 to 80%RH (Non condensing)

Storage Environment

-20 to 50°C, 0 to 85%RH (Non condensing)

-4 to 122°F, 0 to 85%RH (Non condensing)

Battery life

150h

Power supply(Dry battery)

4 AA Alkali Batteries

Power supply(AC power)

AC-Adaptor (Option)

Sampling rate

approx.300ms

Linearlizer

Digital Linearizer method (Compliant with IEC 60584-1 (2013))
