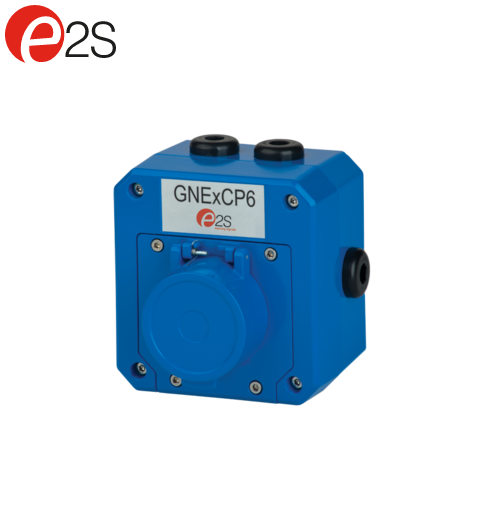

Nút nhấn báo động (Manual Call Point) - E2S

Model: GNEXCP6B-PT

Specification:

GNExCP6B:
II 2G Ex d e mb IIC T4 Gb
II 2D Ex t IIIC T80°C Db
IP66
Ambient:
Ta = -40°C to +50°C/+55°C [-40° to +122°F/+131°F]
Ingress protection:
IP66
Housing material:
GRP – glass reinforced polyester
(UV stable)
Colour:
RAL3000 Red (others available on request)
Cable entries:
2 x M20 clearance top and
1 x M20 clearance side.
Back box can be rotated to give
2 x bottom and 1 x side entries.
Stopping plugs:
2 x Ex e nylon plugs as standard
Brass and stainless steel plugs optional
Terminals:
6 × 4.0mm² / 8 × 2.5mm²
Weight:
1.3Kg/2.86Ibs
Note:
For applications that do not require monitoring
resistors, diodes or inidcator LED’s please see
the GNExCP6A-PT version.
Data sheet reference: 1.3.06.
The GNExCP6B call point can contain a maximum of two resistor or diode E.O.L. or series modules. The LED indicator can be combined with an EOL resistor or diode.
