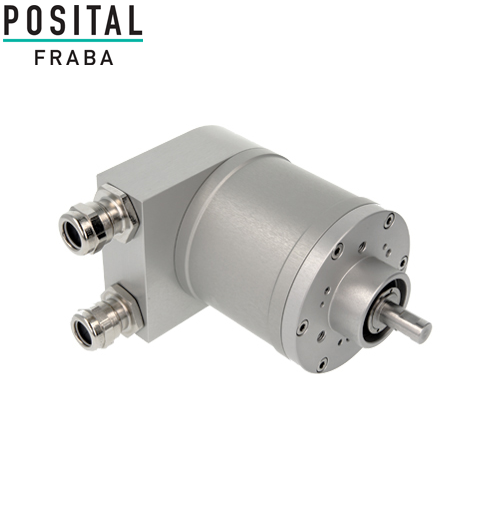

Model: OCE-DPC1B-0013-F12S-HFZ/ Bộ mã hóa vòng quay tuyệt đối/ IXARC Absolute Rotary Encoder/ Posital Fraba

Interface



Interface

Profibus DP

Profile

DPV0, DPV1 and DPV2 Class 2 (EN50170 + EN50254)

Diagnostics

Memory

Manual Functions

Address selector switch 0-99 and terminal resistor (with connection cap)

Features

Round Axis

Transmission Rate

≤12 Mbaud

Interface Cycle Time

≥ 1 ms

Programming Functions

Resolution, gearing factor (physical resolution) , velocity scaling + filter, preset (zero point), counting direction, limit switches , node number, teach-in, diagnosis



Outputs



Output Driver

Profibus Data Interface, galvanically isolated via opto-couplers



Electrical Data



Supply Voltage

10 – 30 VDC

Current Consumption

≤ 230 mA @ 10 V DC, ≤ 100 mA @ 24 V DC

Power Consumption

≤ 2.5 W

Start-Up Time

< 1 s

Reverse Polarity Protection

Yes

Short Circuit Protection

Yes

EMC: Emitted Interference

DIN EN 61000-6-4

EMC: Noise Immunity

DIN EN 61000-6-2

MTTF

109 years @ 40 °C



Sensor



Technology

Optical

Resolution Singleturn

13 bit

Accuracy (INL)

±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit)

Code

Binary



Environmental Specifications



Protection Class (Shaft)

IP66/IP67

Protection Class (Housing)

IP66/IP67

Operating Temperature

-40 °C (-40 °F) - +70 °C (+158 °F)

Storage Temperature

-40 °C (-40 °F) – +85 °C (+185 °F)

Humidity

98% RH, no condensation



Mechanical Data



Connection Cap Material

Aluminum

Housing Material

Aluminum

Housing Coating

Eloxide

Flange Type

Clamp, ø 78 mm, ATEX

Flange Material

Aluminum

Shaft Type

Solid, Single Flat, Length = 20 mm

Shaft Diameter

ø 12 mm (0.47")

Rotor Inertia

≤ 35 gcm² [≤ 0.2 oz-in²]

Friction Torque

≤ 5 Ncm @ 20 °C, (7.1 oz-in @ 68 °F)

Max. Permissible Mechanical Speed

≤ 3000 1/min

Shock Resistance

≤ 100 g (half sine 11 ms, EN 60068-2-27)

Vibration Resistance

≤ 10 g (10 Hz – 2000 Hz, EN 60068-2-6)

Length

109 mm (4.29")

Weight

900 g (1.98 lb)



Electrical Connection



Connection Orientation

Radial

Connection Type

2 x Blind Plug, Radial
