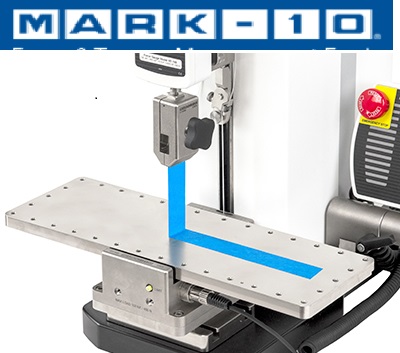

Peel Test Fixture Model G1109

Xuất sứ: USA

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: MARK-10 VIET NAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Admin

support@ansgroup.asia

0911 47 22 55

0898788268

anhnghisonhcm

* Đặt tính:

  • Maximum force: 100 lbF (500 N)

  • Maintains 90° angle between the table and the direction of pull

  • Optional adjustable angle mount tilts the fixture up to ±30°.

  • Optional adjustable angle adapter with pulley, 0° to 90°, while preserving horizontal table orientation (max. force: 30 lbF [150 N])

  • Large working area with threaded mounting holes

  • Maximum table travel: 8.2 in (210 mm)

  • Weight (G1109 only): 6.0 lb (2.7 kg)

  • Compatible with the ESM303 motorized test stand. Optional adapter available for ESM750 / ESM1500.

  • Compatible only with force gauges, not remote load cells

  • Conforms to ASTM D6862, D3330, and D903
