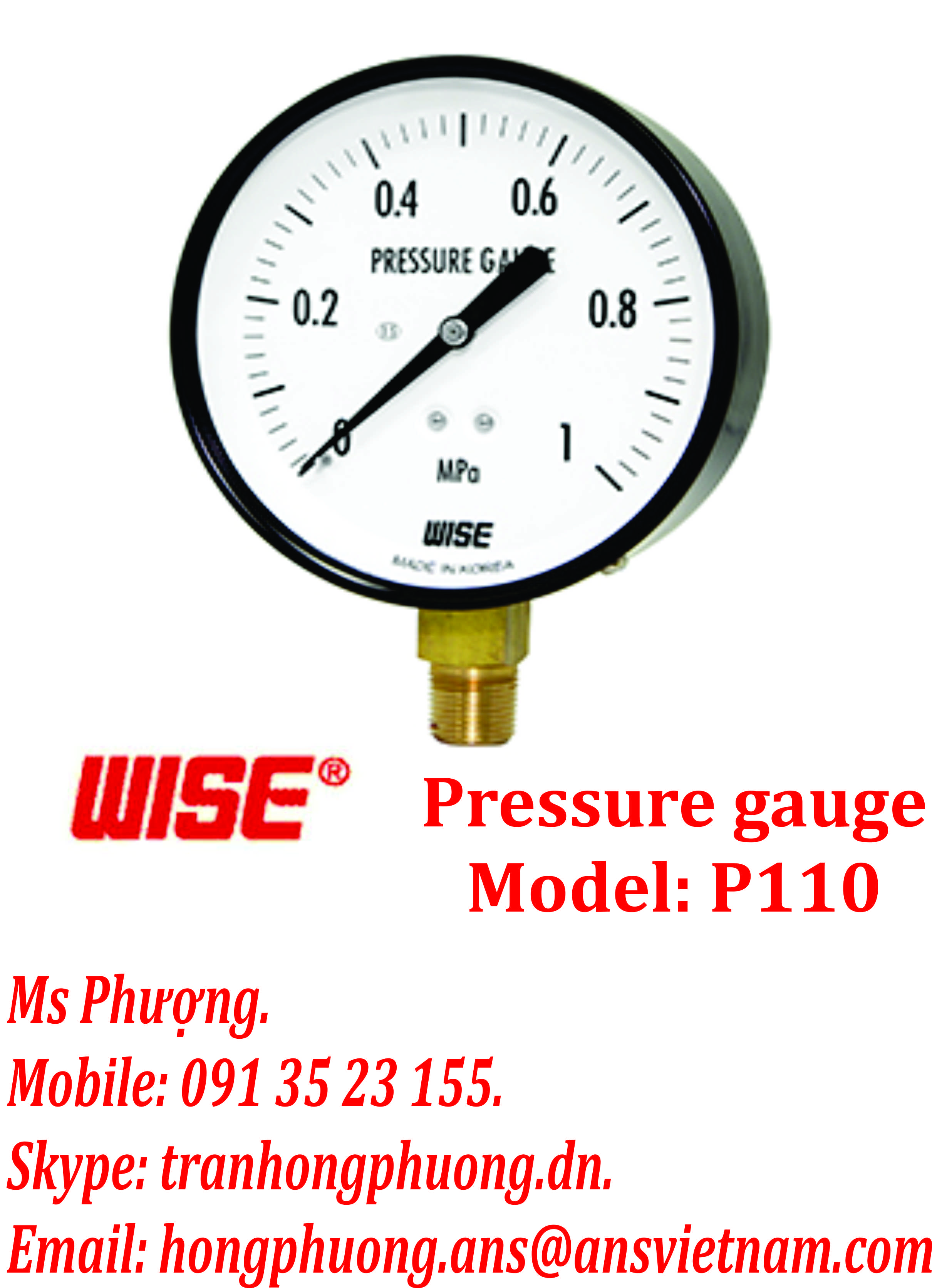

General service pressure gauge
Model : P110

Service intended
P110 series are a general service pressure gauge. P110 is a low cost and features high quality parts. It is suitable for a non-corrosive fluid. Air, oil, gas or water services are the most common applications.
Nominal diameter
●40, 50, 60, 75, 100, 150 and 200 mm
Accuracy
●40mm : ±3.0% of full scale
●50, 60, 75, 100, 150 and 200 mm : ±1.5% of full scale
Scale range (MPa, kPa, bar)
●40 mm : 0~0.2 to 0~3.5 MPa
●50mm : 0~0.2 to 0~10MPa
●60, 75 mm : -0.1 ~ 0 to 0~25MPa
●100mm(New) : -0.1 ~ 0 to 0~35MPa
●100 mm and 150mm : -0.1 ~ 0 to 0 ~ 100MPa
●200mm : -0.1 ~ 0 to 0~35MPa
Working temperature
●Ambient : -20 ~ 60℃
●Fluid : Max. 60℃
Temperature effect
Accuracy at temperature above and below the reference temperature (20℃) will be effected by approximately ±0.4% per 10℃ of full scale

Pressure connection
Brass
Element
●40 and 50mm : brass
●60, 75 and 100mm(New) : ≤10MPa : brass (>10MPa : 316SS)
●100, 150 and 200mm : ≤7MPa : brass (>7MPa : 316SS)
●C Type bourdon tube or helical bourdon tube
Case
Black finished steel
Black finished aluminium (diameter 200mm)
Window
Glass
Movement
Brass
Cover
Black finished steel
Dial
White aluminium with black graduations
Pointer
Black painted aluminium alloy
Process connection
●40mm : 1/8" PT, NPT & PF
● 50mm : 1/4", 1/8"PT, NPT & PF
● 60mm : 1/4" PT, NPT & PF
● 75 and 100mm(new) : 3/8"PT, NPT & PF
● 100,150 and 200mm : 1/2", 3/8"PT, NPT & PF
