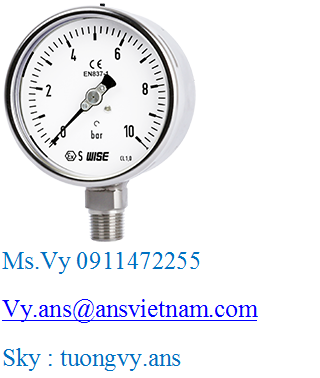

Air regulator service pressure gauge fully stainless steel wetted parts
Model : P113Catalogue Download :

Service intended
P113 series are specifically designed for CDA (Clean dry air) application regulators used in electronic, medical, biotechnology and pharmaceutical industry.
Nominal diameter
50 mm (2")
Accuracy
±1.6% of full scale
Scale range (MPa, bar)
0 ~ 40 MPa
Working pressure
●Steady : 75% of full scale
●Over range protection : 130% of full scale
Working temperature
●Ambient : -40 ~ 65°C
●Fluid : Max. 200°C
Temperature effect
Accuracy at temperature above and below the reference temperature (20℃) will be effected by approximately ±0.4% per 10℃ of full scale

Pressure connection
304SS
Element
Type 316L SS
<6 MPa : C-type bourdon tube
≥6 MPa : Helical type bourdon tube
Case
Nickel plated steel
Movement
Brass
Dial
White aluminium with pointer stop pin
With black/red lettering, dual pressure scale (bar/psi and MPa/bar)
Ring and window
Twist-lock polycarbonate
Pointer
Black painted aluminium alloy
Process connection
¼" NPT
