PRK25C.A2/2N-M12 Cảm biến quang Photoelectric sensor Leuze

Xuất sứ: Germany

Nhà cung cấp: ANS Đà Nẵng

Hãng sản xuất: LEUZE VIET NAM

Liên hệ tư vấn

Ms. Diệu

dieu.ans@ansvietnam.com

0902337066

0962678764

anhnghisonhcm

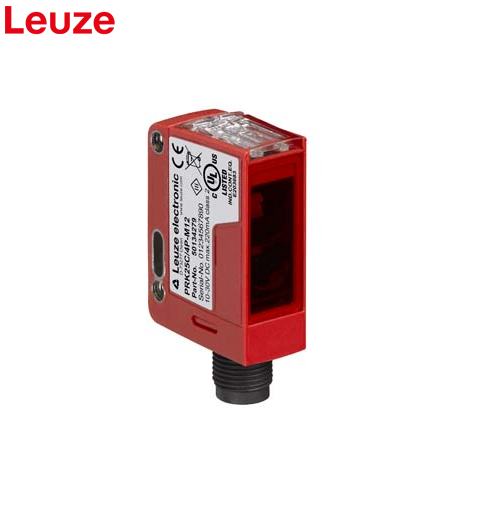

Model: PRK25C.A2/2N-M12 Cảm biến quang Photoelectric sensor Leuze

Features:

Series: 25C

Operating principle: Reflection principle

Application: Detection of highly transparent bottles, Detection of transparent films

Special version: Autocollimation

Operating range: 0 ... 5 m, With reflector TK(S) 100x100

Operating range limit: 0 ... 6 m, With reflector TK(S) 100x100

Light source: LED, Red

Protective circuit: Polarity reversal protection, Short circuit protected

Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple

Residual ripple; 0 ... 15 %, From UB

Open-circuit current: 0 ... 20 mA

Switching frequency: 1,500 Hz

Response time: 0.33 ms
