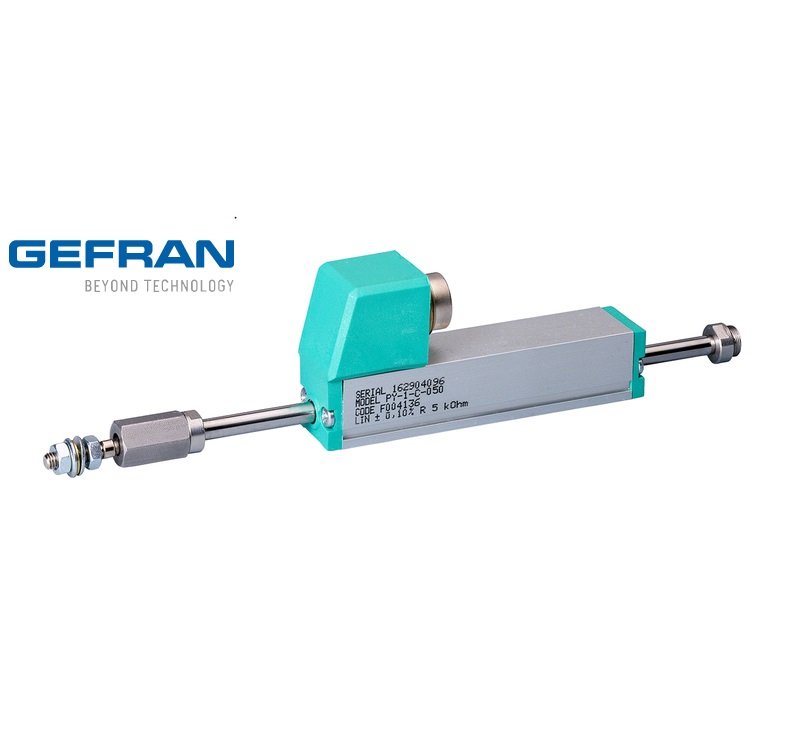

Description

  • 10 to 100 mm stroke
  • Double support of the control rod and return spring
  • Tip with M2.5 thread and stainless steel ball
  • Independent linearity up to ± 0.1%
  • Infinite resolution
  • No variation of electrical signal outside theoretical electrical stroke
  • Displacement speed up to 10 m/s
  • Working temperature: -30...+100°C
  • Electrical connections:
    PY2 F 3 wire 1m screened cable
    PY2 C 5-pole connector DIN43322
  • Life duration: > 100x106 operations (within C.E.U.)
  • Grade of protection IP40
  • Suitable for use in explosive environments with presence of gas (groups IIA, IIB, IIC) and combustible powders.
    Standards for simple device:
    ATEX CEI EN 50020 2003 - paragraph 5.4 a
