Description

  • 25 to 300 mm stroke

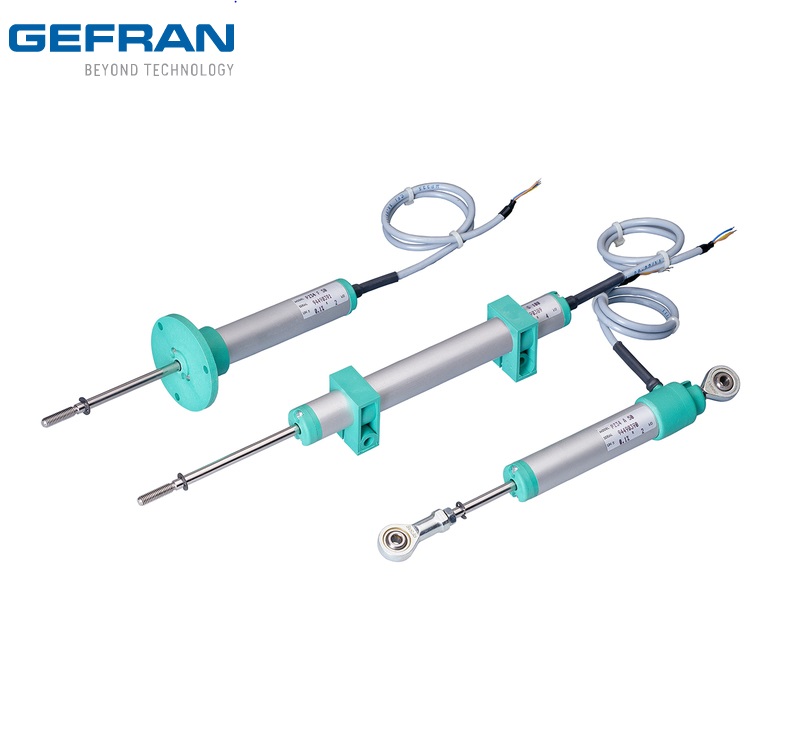

  • Mechanical fixing using brackets, selfaligning ball-joints or flange
  • Independent linearity up to ± 0.05%
  • Infinite resolution
  • No variation of electrical signal outside theoretical electrical stroke
  • Displacement speed 10 m/s
  • Working temperature: -30...+100°C
  • Electrical connection: 3-pole screened cable (1m length)
  • Life duration: > 25x106 meters or >100x106 operations, whichever is the smaller (within C.E.U.)
  • Grade of protection IP60
