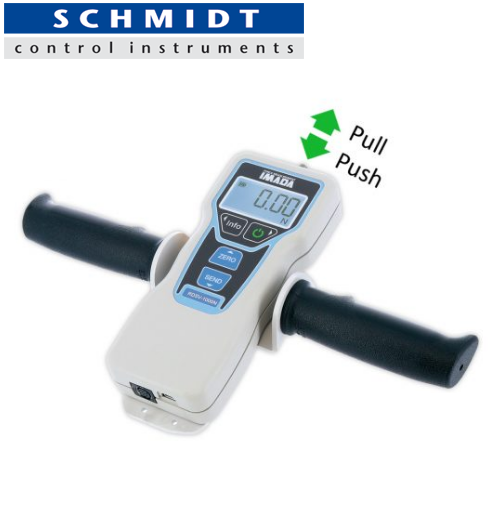

Model: RDSV-1000N/ Máy đo lực cầm tay (Force Gauge)/ Hans Schmidt

Measuring principle:

Bidirectional force sensor with strain gauge

Accuracy:

±0.2 % Full Scale ±1 digit

Measuring units:

N, gf (kgf), lbf (ozf)

Display:

LCD, 4 digits

Overload capacity:

200 % full scale,
Alarm signal at 90 % full scale,
Alarm signal and flashing display at 110 % full scale

Display update rate:

8 times/sec.

Plug gauge:

M6 male thread

Memory:

Internal memory for 1000 readings

Sampling rate:

1000 times/sec

Zero adjustment:

10 % full scale

A/D converter:

16 bit

Output signal:

USB,
RS-232 (8, 1, N, 19200),

Temperature range:

0 – 40 °C

Air humidity:

20 – 80 % RH

Low battery indicator:

Display flashes

Power supply:

Rechargeable NiMH batteries (approx. 30 h continuous use without background light, approx. 14 h with background light,
approx. 4.5 h charging time). Charging occurs with AC adapter or by connection via USB cable to a PC or a mobile battery.

Mounting threads
for test stand:

4 x M4, Depth 8 mm

Housing material:

Die-cast aluminium

Dimensions:
Handle:

181 x 72 x 32 mm (LxWxH)
144 x 290 x 41 (LxWxH)

Weight, net (gross):
Handle:

Approx. 460 g (approx. 2500 g)
approx. 600 g
