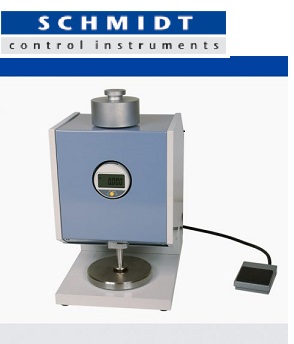

Thickness Gauge D-2005

Xuất sứ: Germany

Nhà cung cấp: ANS- ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: HANS SCHMIDT/ IMADA VIET NAM

Ứng dụng sản phẩm: Automotive, Textile

Liên hệ tư vấn

Admin

support@ansgroup.asia

0911 47 22 55

0898788268

anhnghisonhcm

Thickness Gauge D-2005

Measuring range up to 10, 25 or 50 mm
Resolution 0.01 / 0.001 mm

Thickness Gauge to determine the material thickness of all kinds of fabrics. With these instruments the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber etc.

Thickness according to international standards DIN, EN ISO or ASTM

  • Measuring depth: 110 mm

  • Measuring range: 0 - 10 mm,
    0 - 25 mm or 0 - 50 mm

  • Resolution: 0.01 or 0.001 mm

  • Display: LCD

Model

Standard

Application

Feeler
Ø mm

Feeler
cm²

Test Pressure

D-2005-T

DIN EN ISO 5084

Textiles

50.42

20

0.1 kPa and 1 kPa

D-2005-V1

DIN EN ISO 9073-2

Standard Fleece

56.42

25

0.5 kPa

D-2005-V2

DIN EN ISO 9073-2

Standard Fleece

56.42

25

0.1 and 0.5 kPa

D-2005-G1

DIN EN ISO 9863-1

Geomaterials

56.42

25

2 kPa

D-2005-G2

DIN EN ISO 9863-1

Geomaterials

56.42

25

2 kPa, 20 kPa and 200 kPa

D-2005-NW

DIN EN ISO 53855

Non-woven
textiles

56.42
35.68

25
10

0.5 kPa and 1 kPa
5 kPa

D-2005-P*

DIN EN ISO 534

Paper

16

2

50 kPa and 100 kPa

D-2005-HY

DIN EN ISO 54540

Hygienic paper

56.42

25

2 kPa

D-2005-L

DIN EN ISO 2589

Leather

10

0.785

49,1 kPa

D-2005-Gi



Rubber

35.68

10

5 kPa







Feeler
Calotte





D-2005-F*

DIN 53370

Foil

R 30 mm



0.5 N
