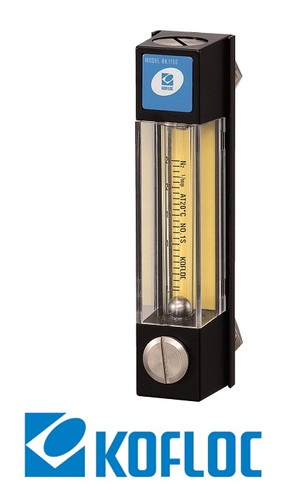

RK1150 Thiết bị đo lưu lượng Kofloc Vietnam ANSdanang



Fluids Exclusively for air and N2
Flow range (FS) RK1150 100ML,200ML,500ML/MIN
5L,10L,25L,30L/MIN
RK1150PV
RK1150V 5L,10L,25L,30L/MIN
Accuracy FS ±10% (Measurement point)
Proof pressure 0.5MPa
Available scale 10:1


Material S BS
Body block Plastic
Tapered tube Pyrex®, glass
Packing FKM NBR
Float Pyrex, SUS316, glass
Protective cover Acrylic resin
Joint SUS304 Brass
Temperature resistance MAX40℃
Connection Rc 1/4 (Standard); Rc 1/8 (Optional)
