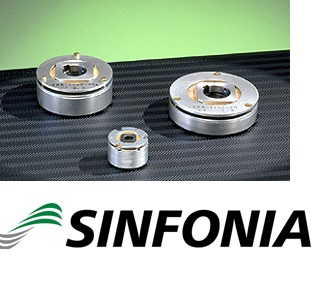

SBR-62-0030EZ Brake Sinfonia Vietnam ANSdanang

<SBR-62-0030EZ>
Type SBR-62-0030EZ
Static friction torque Nm 3
Rated voltage DC-V 24
Power consumption W (at20°C) 8.5
Weight kg 0.5
Unit:mm





Response Characteristics

Type SBR-62-0030EZ
Armature pull-in time    ta (ms) 60
Armature release time    tar (ms) 20



Allowable workload / Max speed / Inertia J

Type SBR-62-0030EZ
Allowable workload (J) Per single time 200
Total workload 1.0×105
Max speed (r/min) 6000
J (kgm2) 8.6×10-6
Number of stops Normal holding (0r/min) 2000000
Emergency braking 200
Heat resistance class H
Initial armature pull-in voltage (at20°C) Less than DC15
Initial armature release voltage (at20°C) More than DC1V
Mounting direction Free
