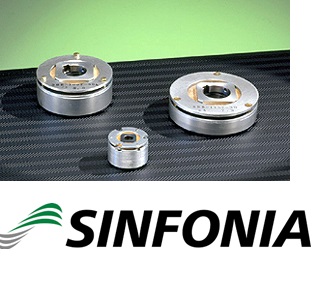

SBS-300 Brake Sinfonia Vietnam ANSdanang

SBS-300>
Type SBS-300
-4D -8D
Static friction torque Nm 800 1500
Rated voltage DC-V 24
Power consumption W(at75°C) 82
Weight kg 70





  1. 2D and 6D types are custom made.
  2. A new clutch and brake may not have the rated torque at first.
  3. 4D, and 6D are productions on order.
Unit:mm
Build-to-order product



Diameter direction
A 300
A1 175
C 300
C1 100
D1 220
Shaft direction
K 17
L 200
P 67
Q 3
R 130
Mounting
CJ P.C.D 260
Screw M16×30
Shaft hole
d 75
b 20
t 81
