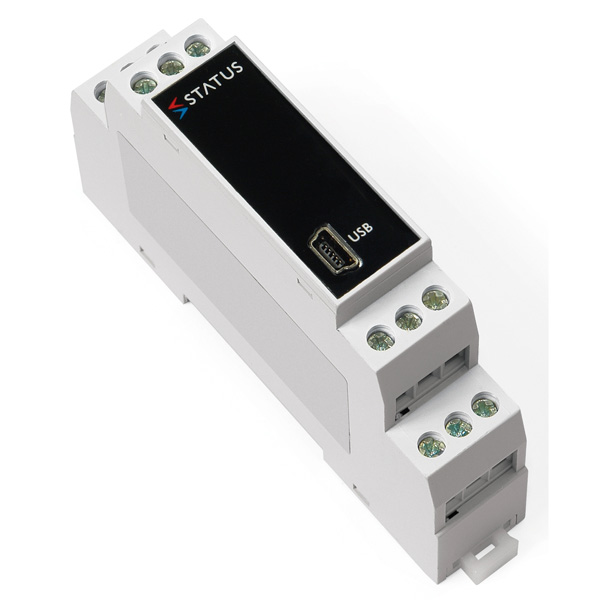

SEM1600 Signal Conditioners- Status Instruments Vietnam

Status SEM1600 Series Signal Conditioners take a raw signal from RTD, thermocouples, voltage or current sources and provide a 2 wire conditioned output (commonly 4-20mA) that can be reliably output to may control systems.

SEM1600 series signal conditioners require a separate (12-24Vac or dc) supply and incorporate IO isolation.  For loop powered temperature transmitters, have a look at the SEM1605, SEM1615 and SEM315 range of DIN rail temperature transmitters HERE.

Along with the above common inputs, resistance can also be selected.  An example of this would be in conjunction with a float level sensor application.  Various versions of these transmitters would also allow a non linear signal, for example volume filling in a tank.  This is configurable via the free of charge Status “Speedlink” software and standard mini USB “camera cable”.  Contact Fluidic for a copy of the downloadable software.

Status DIN Rail Signal Converters come with a small footprint.  The SEM1600 series has a width of 17.5mm, reducing panel size and associated costs.  Installation is directly to standard “top hat” DIN rail (EN 50022).
