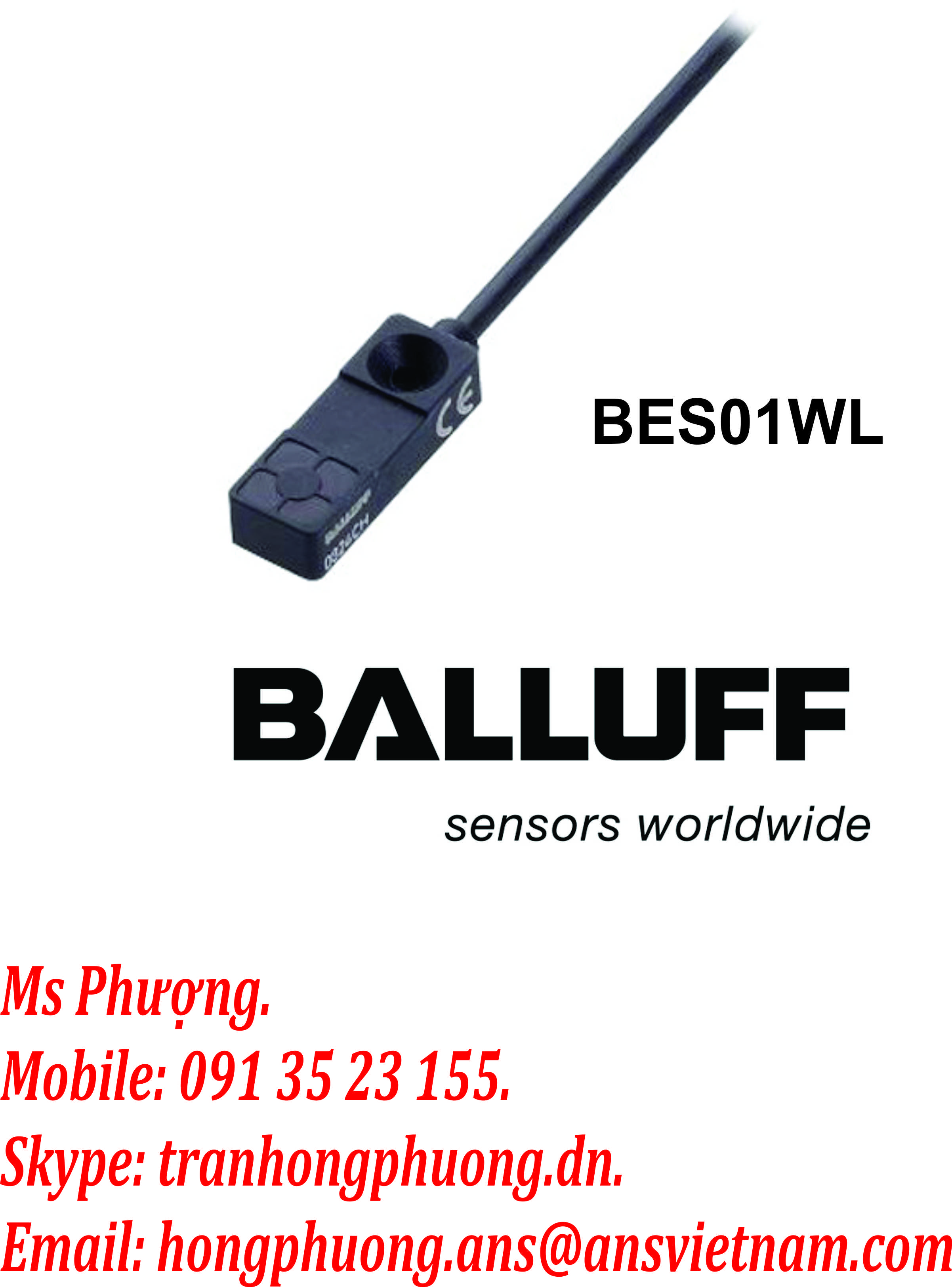

BES01WL | Balluff | BES R03KC-NSC30B-EP05

stimated Lead Time: 4-6 Weeks

Manufacturer: Balluff

Order code: BES01WL

BES R03KC-NSC30B-EP05

Dimensions : 10.0x6.0x30.0 mm

Connection : Cable, TPU, 5.00 m

Output function : NPN, Normally open (NO)

Supply voltage : 10.0…30.0 V

Mech. installation condition : Flush (shielded)

Rated operating distance Sn [mm] : 3.00 mm

Additional text : The sensor is functional again after the overload has been eliminated.

Approvals / Conformity : CE
cULus
EAC

Basic standard : IEC 60947-5-2

Diagnostic Coverage : 0 %

Enclosure Type per IEC 60529 : IP67

Functional Safety : No

Function indicator : Yes

Mission Time : 20 a

MTTF (40°C) : 585 a

Polarity reversal protected : Yes

Power indicator : No

Product group : Inductive sensor

Short circuit protected : Yes

Connection type : Cable

Eff. operating current Ie : 100 mA

Eff. operating voltage Ue DC : 24.0 V

Electrical version : DC, direct current

Load capacitance max. (at Ue) : 0.200 µF

Max. no-load cur. Io undamped : 3.0 mA

No-load current Io damped max. : 14.0 mA

Operating voltage UB max. DC [V] : 30.0 V

Operating voltage UB min. DC [V] : 10.0 V

Rated insulation voltage Ui : 75 VDC

Rated short circuit current : 100 A

Ripple max. (% of Ue) : 15 %

Switching freq. f max. (at Ue) : 3000 Hz

Switching function : Normally open (NO)

Switching output : NPN

Voltage drop static max. : 1.8 V

Ambient temperature Ta max. : 70 °C

Ambient temperature Ta min. : -25 °C

Assured operating distance Sa : 2.40 mm

Cable diameter D max. : 3.0 mm

Cable jacket material : TPU

Cable length : 5.00 m

Conductor cross-section : 0.14 mm²

Depth : 6.0 mm

Eff. operating distance Sr : 3.00 mm

Height (small side) : 10.0 mm

Housing material : PA 6 - GF30 black

Mech. installation condition : Flush (shielded)

Number of conductors : 3

Rated operating distance Sn [mm] : 3.00 mm

Sensing face material : PA 6 - GF30 black

Width (long side) : 30.0 mm

Shipping Weight : 1 Kg
