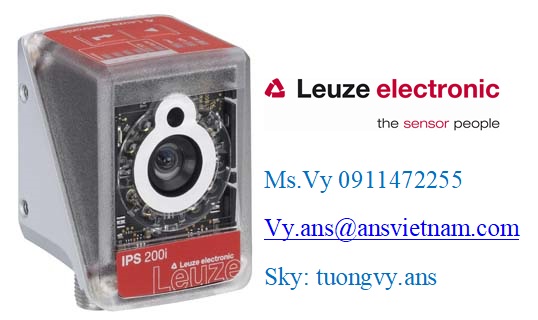

    • SeriesIPS 200i
  • Functions
    • Software functionsCompartment fine positioning
  • Optical data
    • Working range100 ... 600 mm
    • Light sourceLED, Infrared
    • Camera resolution, horizontal1,280 px
    • Camera resolution, vertical960 px
    • Marker size5 ... 20 mm
  • Measurement data
    • Reproducibility (1 sigma)0.1 mm, depending on the application
  • Electrical data
    • Performance data
      • Supply voltage18 ... 30 V, DC
    • Inputs
      • Number of digital switching inputs3 Piece(s)
    • Outputs
      • Number of digital switching outputs5 Piece(s)
  • Interface
    • TypeEthernet
  • Service interface
    • TypeEthernet
  • Connection
    • Number of connections2 Piece(s)
    • Connection 1
      • Type of connectionConnector
      • Thread sizeM12
      • No. of pins12 -pin
      • EncodingA-coded
    • Connection 2
      • Type of connectionConnector
      • Thread sizeM12
      • No. of pins4 -pin
      • EncodingD-coded
  • Mechanical data
    • Dimension (W x H x L)43 mm x 61 mm x 44 mm
    • Housing materialPlastic, Diecast aluminum, PC, Metal
    • Lens cover materialPlastic
    • Net weight120 g
  • Operation and display
    • Type of displayLED
    • Operational controlsButtons
  • Environmental data
    • Ambient temperature, operation0 ... 50 °C
    • Ambient temperature, storage-20 ... 70 °C
    • Relative humidity (non-condensing)90 %
  • Certifications
    • Degree of protectionIP 65
  • Classification
    • Customs tariff number84719000
    • eCl@ss 8.027310201
    • eCl@ss 9.027310201
