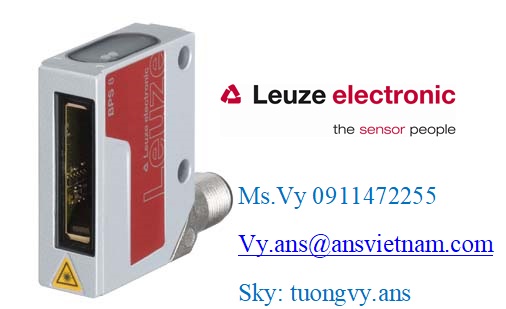

      • SeriesBPS 8
      • Data telegramBinary protocol 6
    • Optical data
      • Depth of field80 ... 140 mm
      • Light sourceLaser, Red
      • Laser class2, IEC/EN 60825-1:2007
      • Light beam exitFront
    • Measurement data
      • Measurement range0 ... 10,000,000 mm
      • Reproducibility (1 sigma)1 mm
      • Measurement value output3.3 ms
      • Max. traverse rate4 m/s
    • Electrical data
      • Performance data
        • Supply voltage4.75 ... 5.5 V, DC
        • Current consumption, max.250 mA
      • Inputs/outputs selectable
        • Number of inputs/outputs selectable1 Piece(s)
    • Interface
      • TypeRS 232
    • Service interface
      • TypeRS 232
      • RS 232
        • FunctionService
    • Connection
      • Connection 1
        • Type of connectionConnector
        • FunctionConnection to device
        • Thread sizeM12
        • No. of pins5 -pin
    • Mechanical data
      • Dimension (W x H x L)15 mm x 48 mm x 40.3 mm
      • Housing materialMetal, Diecast zinc
      • Lens cover materialGlass
      • Net weight70 g
      • Type of fasteningMounting thread, Dovetail grooves, Via optional mounting device, Through-hole mounting
    • Operation and display
      • Type of displayLED
    • Environmental data
      • Ambient temperature, operation0 ... 40 °C
      • Ambient temperature, storage-20 ... 60 °C
      • Relative humidity (non-condensing)0 ... 90 %
    • Certifications
      • Degree of protectionIP 67, EN 60529 with various connectors or screwed-on caps
      • Protection classIII
      • Certificationsc UL US
      • US patentsUS 6,822,774 B
    • Classification
      • Customs tariff number84719000
      • eCl@ss 8.027280190
      • eCl@ss 9.027280190
      •
