Stator HP_PS01-23x160H-HP-R20_A.N.: 0150-1255

Xuất sứ: Switzland

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: LINMOT VIETNAM

Ứng dụng sản phẩm: Automotive

Liên hệ tư vấn

Ms. Diệu

dieu.ans@ansvietnam.com

0902337066

0962678764

anhnghisonhcm

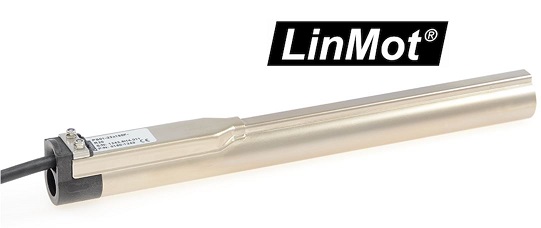

PS01-23x160H-HP-R20   Stator HP, 0.2m cable, IP67 con. M17/9(m)

Article no.: 0150-1255

Technical Data
Max. Stroke 780 mm
Max. Force 138 N
Continuous Force 30/46 N
Max. Velocity 5.2 m/s
Position Repeatability ±0.05 mm
Motor Cable
Supported Drives

Mechanical Data
Stator Diameter 23 mm
Stator Length 257 mm
Stator Mass 450 g
Slider Diameter 12 mm
Slider Length 230 - 850 mm
Slider Mass 180 - 700 g
