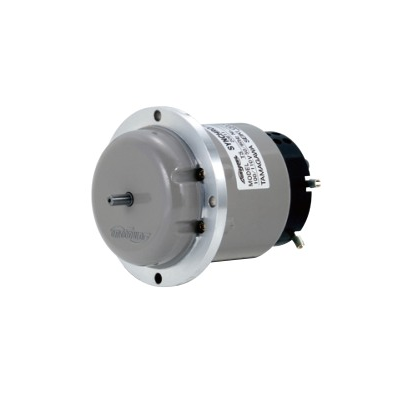

Model: TS 5N2E12 ǀ Mô tơ đồng bộ Tamagawa
|
Model |
TS5N2E12 |
|
Function |
TX･TR |
|
Input Voltage (Vrms) |
200/220 |
|
Input Frequency (Hz) |
50/60 |
|
Output Voltage (Vrms) |
90±3 |
|
Input Current (A Max) |
0.17 |
|
Torque Grad. (N･m/deg. Min) |
8.14 x 10^-4 (8.3gf･cm/deg.) |
|
Receiver Error (deg. Max) |
±1 |
|
Synchronizing Time (sec. Max) |
5 |
|
Temperature Rise (°C Max) |
30 |
|
Insulation Resistance (MΩ Min) |
100 (DC500V) |
|
Dielectric Strength (Vrms.1 min) |
1,500 |
|
Mass (g) |
1,100 |
