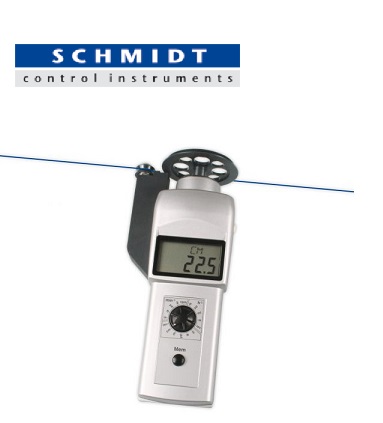

Yarn Speed and Length Meter YS-105

Xuất sứ: Germany

Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG

Hãng sản xuất: HANS SCHMIDT/ IMADA VIET NAM

Ứng dụng sản phẩm: Automotive, Textile

Liên hệ tư vấn

Admin

support@ansgroup.asia

0911 47 22 55

0898788268

anhnghisonhcm

Yarn Speed and Length Meter YS-105 Combined hand-held tachometer:
- speed and length meter for filament and similar materials
- hand-held tachometer for contact measurement

Tachometer with LCD display and many electable measuring units

High quality hand-held tachometer with LCD display for professional use at e. g. circular knitting machines, winders, motor shafts etc.

Hand-held tachometer to determine yarn- or wire speed as well as length;
the measurement is carried out, as long as the measuring key is pressed
The tachometer can be used also for contact measuring of revolutions, line speeds and length
Measuring range (yarn and wire):
– speed 0.1 – 5000 m/min
– length 0.1 – 9999 m
Max. material diameter:
– wire 0.3 mm
– yarn 1.5 mm
Unique wrapper roller guides for easy yarn catching
Contact more than 180°
6 inch U-grooved measuring wheel
Max., Min and last four readings can be stored with the yarn speed and length meter YS-105
16 adjustable measuring units: rpm, rev, m/min, m/h, ft/min, ft/h, yd/min, yd/h, in/min, in/h, mil/h, cm, m, in, ft, yd
