Product Description

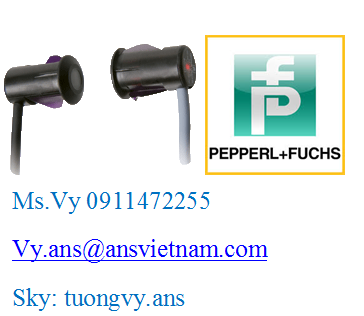

Miniature photoelectric sensor with plug-in style housing for mounting in 13 mm hole
System components
Emitter BB10-T/33/76b/115-7m
Receiver BB10-R/33/59/102/115-7m
General specifications
Effective detection range 0 ... 6 m
Threshold detection range 8 m
Light source IRED
Light type modulated infrared light , 880 nm
Diameter of the light spot approx. 1300 mm at a distance of 6 m
Functional safety related parameters
MTTFd 795 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Indicators/operating means
Function indicator LED red: lights up when receiving the light beam ; flashes when falling short of the stability control; OFF when light beam is interrupted
Electrical specifications
Operating voltage 10 ... 30 V DC
Output
Switching type dark on
Compliance with standards and directives
Standard conformity
  Product standard EN 60947-5-2:2007
IEC 60947-5-2:2007
Ambient conditions
Ambient temperature -40 ... 60 °C (-40 ... 140 °F) , fixed
-20 ... 60 °C (-4 ... 140 °F) , movable
Mechanical specifications
Degree of protection IP67
Connection 7 m fixed cable
Receiver: grey ; Emitter: black
Material
  Housing PC , black
  Optical face Plastic pane
