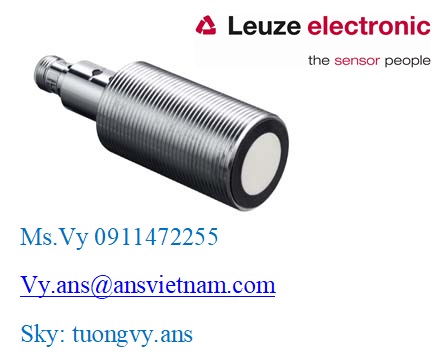

Ultrasonic distance senso

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: LEUZE VIET NAM

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

      • Series430
      • Contains2x M30 mounting nut
    • Optical data
      • Opening angle15 °
      • Direction of beamFront
    • Measurement data
      • Measurement range300 ... 3,000 mm
      • Resolution1.0 mm
      • Measuring accuracy0.5 %
      • Reference value, accuracy of measurementEnd value
      • Reference value repeatabilityEnd value
      • Temperature drift1.5 %
    • Electrical data
      • Protective circuitInductive protection, Polarity reversal protection, Short circuit protected
      • Performance data
        • Supply voltage15 ... 30 V, DC
        • Residual ripple0 ... 10 %, From UB
        • Open-circuit current0 ... 50 mA
        • Switching hysteresis25,000 µm
      • Outputs
        • Number of analog outputs1 Piece(s)
        • Number of digital switching outputs1 Piece(s)
        • Characteristic curveRising / falling
        • Switching outputs
          • Switching current, max.150 mA
          • Switching voltagelow: ≤2.5V
        • Switching output 1
          • Switching elementTransistor, Push-pull
          • Switching principleNC contact/NO contact
      • Inputs/outputs selectable
        • Number of inputs/outputs selectable1 Piece(s)
        • Switching voltage, outputsTyp. UB / 0 V
        • Input/output 1
          • FunctionActivation input, Teach input, Freely configurable
    • Timing
      • Switching frequency4 Hz
      • Ultrasonic frequency120 kHz
      • Response time125 ms
      • Readiness delay300 ms
    • Interface
      • TypeIO-Link
      • IO-Link
        • COM modeCOM2
        • ProfileSmart sensor profile
        • Frame type2.5
        • SpecificationV1.1
        • Device ID0x000C00
        • SIO-mode supportYes
        • Process data IN2 bytes
        • Dual-core operating modeNo
        • Min. cycle timeCOM2 = 2.3 ms
    • Connection
      • Connection 1
        • Type of connectionConnector
        • Thread sizeM12
        • MaterialMetal
        • No. of pins5 -pin
        • EncodingA-coded
    • Mechanical data
      • DesignCylindrical
      • Thread sizeM30 x 1 mm
      • Dimension (Ø x L)30 mm x 90 mm
      • Housing materialMetal, Nickel-plated brass
      • Ultrasonic transducer materialPiezoceramics (contains lead zirconium titanate (PZT))
      • Net weight110 g
    • Operation and display
      • Type of displayLED
      • Number of LEDs2 Piece(s)
      • Operational controlsControl buttons
    • Environmental data
      • Ambient temperature, operation-25 ... 70 °C
      • Ambient temperature, storage-30 ... 85 °C
    • Certifications
      • Degree of protectionIP 67, IP 68
      • Protection classIII
      • Certificationsc UL US
      • Standards appliedIEC 60947-5-2
    • Classification
      • Customs tariff number85365019
      • eCl@ss 8.027270804
      • eCl@ss 9.027270804
      • ETIM 5.0EC001846
      •
