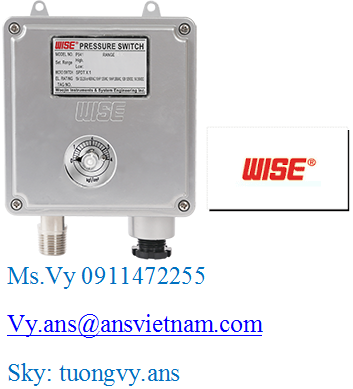

Weatherproof type pressure switch
Xuất sứ: korea
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: WISE CONTROL VIET NAM
Mr. HuyWeatherproof type pressure switch (Local setpoint adjustable)
Model : P940 seriesCatalogue Download :
Service intended
P940 series pressure switches are micro contact type, and these are suitable for corrosive fluids and high pressure measurements. Dead band is fixed.
Nominal diameter
Refer to dimension drawing
Repeatability
Adjustable range (MPa, kPa, bar)
●-0.1 ~ 0 to -0.1 ~ 2.5 MPa
●0 ~ 0.1 to 0 ~ 35 MPa
●0 ~ 0.1 to 0 ~ 35 MPa
Dead band
●One SPDT : 5~6% of full scale
●Two SPDT : 10 ~ 12% of full scale
●Two SPDT : 10 ~ 12% of full scale
Working temperature
●Ambient : -20 ~ 65°C
●Fluid : Max. 100°C
●Fluid : Max. 100°C
pressure connection
Stainless steel (316SS)
Element
Stainless steel (316SS)
Case and cover
●ALDC 12.1
●Silver gray painted
●Silver gray painted
Contact
●Micro contact type
●One SPDT or two SPDT
●One DPDT
●One SPDT or two SPDT
●One DPDT
Contact rating
●AC 125V/250V 15A
DC 125V 0.5A for Resistance Load
●AC 125V/250V 15A
DC 125V 0.05A for lnductive Load
DC 125V 0.5A for Resistance Load
●AC 125V/250V 15A
DC 125V 0.05A for lnductive Load
Conduit connection
●½" PF (Single setpoint) P941
●¾" PF (Dual setpoint) P942
●¾" PF (Dual setpoint) P942
Process connection
⅜", ½" PT, NPT and PF
