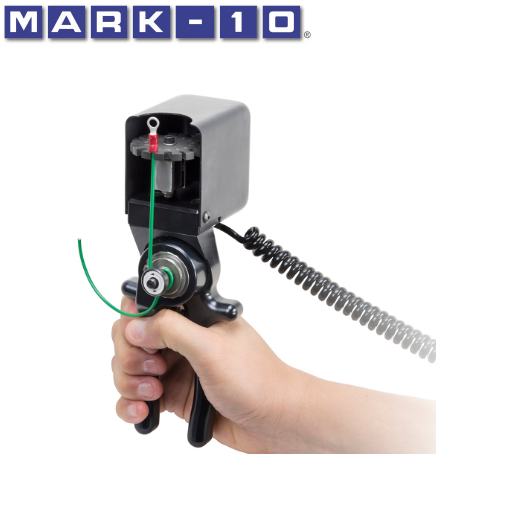

  • Member of the Plug & Test™ family of interchangeable sensors and indicators
  • Ergonomic handles and convenient tensioning mechanism
  • Measures pull forces
  • NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
  • Accuracy:  ± 0.5% of full scale + indicator
  • Weight: 2.5 lb [1.2 kg]
  • Slot dimensions (in [mm]): 0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8], 0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4]
  • Minimum sample length: 7.0 in [178 mm]
