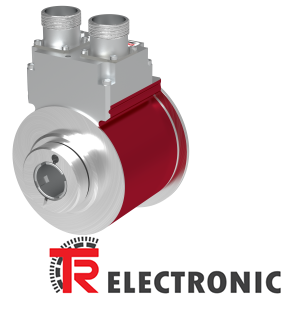

Mr. HuyNominal voltage
Specific value
24 VDC
Limit values, min/max
10/30 VDC
Nominal current, typically
Specific value
120 mA
Condition
unloaded
Device design
Type
Single-/Multi-Turn
Total resolution
<= 33 Bit
Number of steps per revolution
<= 32768
Number of revolutions
<= 256000
Output capacity
<= 25 Bit
INTERBUS - Interface
INTERBUS
IEC 61158, IEC 61784
Data transmission
RS-422, 2-wire Remote Bus
Encoder-Profile
71
Ident number
55 dec.
Profile class
K3
Data refresh
0.5 ms
Number of words
2 IN, 2 OUT
Transmission rate
Specific value
300 kbit/s Netto
Specific value
500 kbit/s Brutto
Parameter/Function, changeable
Resolution
Output code
Offset
Preset parameter
Sign
Counting direction
Type of parametrization
programmable
Programming - Tool
Fieldbus-Device
Maximum Speed, mechanically
<= 3000 1/min
Shaft load, axial/radial
Own mass
Bearing life time
>= 3.9E+10 revolutions
Bearing life time - Parameter
Speed
3000 1/min
Operating temperature
60 °C
Shaft type
Shaft diameter [mm]
10
Shaft diameter [mm]
14
Shaft diameter [mm]
16
Shaft diameter [mm]
20
Shaft diameter [mm]
24
Shaft diameter [mm]
25
Shaft diameter [mm]
27
Angular acceleration
<= 10E+4 rad/s²
Moment of inertia, typically
67E-6 kg m²
Start-up torque, 20 °C
8 Ncm
Concentricity tolerance
± 0.05 mm
Mass, typically
0.7 kg
