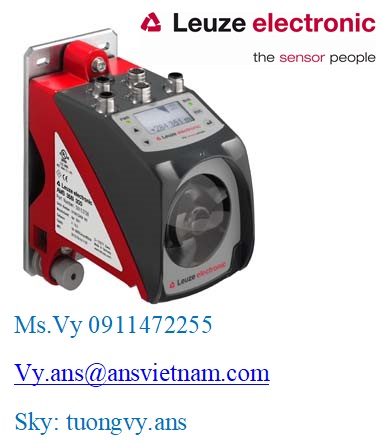

- SeriesAMS 300i
- ApplicationCollision protection of cranes / gantry cranes, Positioning of electroplating plants, Positioning of high-bay storage devices, Positioning of skillet systems and side-tracking skates
-
Characteristic parameters
- MTTF48 years
-
Optical data
- Light sourceLaser, Red
- Laser class2, IEC/EN 60825-1:2007
-
Measurement data
- Measurement range200 ... 120,000 mm
- Absolute measurement accuracy2 mm
- Reproducibility (3 sigma)0.9 mm
- Max. traverse rate10 m/s
-
Electrical data
-
Performance data
- Supply voltage18 ... 30 V, DC
-
-
Interface
- TypeSSI
-
SSI
- Clock frequency50 ... 800 kHz
-
Connection
- Number of connections3 Piece(s)
-
Connection 1
- Type of connectionConnector
- Designation on devicePWR
- FunctionSignal IN, Signal OUT, Voltage supply
- Thread sizeM12
- TypeMale
- No. of pins5 -pin
- EncodingA-coded
-
Connection 2
- Type of connectionConnector
- Designation on deviceSSI
- FunctionData interface
- Thread sizeM12
- TypeMale
- No. of pins5 -pin
- EncodingB-coded
-
Connection 3
- Type of connectionConnector
- Designation on deviceSERVICE
- FunctionService interface
- Thread sizeM12
- TypeFemale
- No. of pins5 -pin
- EncodingA-coded
-
Mechanical data
- DesignCubic
- Dimension (W x H x L)84 mm x 166.5 mm x 159 mm
- Housing materialMetal, Diecast zinc/aluminum
- Net weight2,450 g
- Type of fasteningThrough-hole mounting
-
Operation and display
- Type of displayLED, LC Display
- Operational controlsMembrane keyboard
-
Environmental data
- Ambient temperature, operation-5 ... 50 °C
- Ambient temperature, storage-30 ... 70 °C
- Relative humidity (non-condensing)90 %
-
Certifications
- Degree of protectionIP 65
- Protection classIII
- Certificationsc UL US
-
Classification
- Customs tariff number90318020
- eCl@ss 8.027270801
- eCl@ss 9.027270801
- ETIM 5.0EC001825
-
