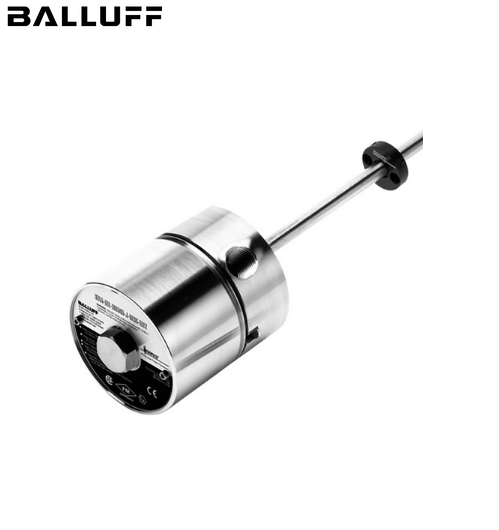

BTL1KTW BTL5-E57-M0250-J-DEXC-TA12 Cảm biến vị trí Position Sensors Balluff

Xuất sứ: Germany

Nhà cung cấp: ANS Đà Nẵng

Hãng sản xuất: BALLUFF VIET NAM

Liên hệ tư vấn

Ms. Diệu

dieu.ans@ansvietnam.com

0902337066

0962678764

anhnghisonhcm

    Model: BTL1KTW BTL5-E57-M0250-J-DEXC-TA12/ Cảm biến vị trí (Position Sensors)/ Balluff

    Specifications:

Series: Ex. Rod series

Installation Details: Ø18h6 flange plus holes

Case material: Stainless steel (1.4404)

Number of magnets max: 1

Terminal: 7-pin terminal connection

Analog output: Analog, current 20 ... 4 mA

Measurement range: 250 mm

Resolution: ≤ 0.66 µA

Nonlinearity: ± 100 µm

Recurrence: ≤ ± 0.66 µA

Working voltage Ub: 10 ... 30 VDC

Ambient temperature: -40 ... 80 ° C

Level of security: IP68

Approval / Compliance: CE, CSA, EAC, IECEx, WEEE

    Explosion-proof category. Ex: ATEX: 1G (EPL Ga) <br> ATEX: 1D (EPL Da) <br> IECEx: EPL Ga <br> IECEx: EPL Da <br> NEC 500: Class I,              Division 1 <br>        NEC 505: Class I , Zone 1
