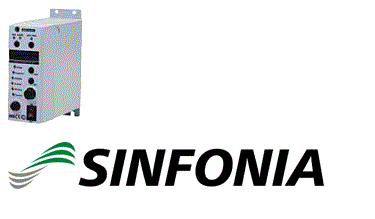

■Specifications:C10-VCF/VF
Model C10-1VCF C10-3VF
Input Power Source

AC100/110 ±10%, 50/60Hz or
AC200/220±10%, 50/60Hz

Output Control system

PWM system

Voltage

0-190 V (for AC 200 V input)

0-95 V (for AC 100 V input) Optional unit C10-TR allows output voltage in 0-190 V range
Vibration frequency Half wave: 45-90 Hz
Max. current 1A 3A
Operating
Modes
Constant voltage mode Frequency, output voltage set manually
Additional
features
Speed selector Selection of up to 4 amplitude settings by means of external signal
*A connector is included for C10-1VCF
Start/stop control Start/Stop control by external signal
Output signal Output signal synchronized to parts feeder operation
Soft start Start-up time 0.2-4.0 sec
Others Noise tolerant voltage Above 1000 V
Ambient temperature 0-40℃
Ambient humidity 10-90% (no condensation)
Gross weight 0.8kg
Loss 15W(for AC200/220V input)
Applicable feeder type Small vibrating feeder CF series (CF-1,CF-2,CF-3)
Water resistant electro magnetic feeder WCF series (WCF-2A,WCF-3)
CF-4
Option unit Connectable to C10-TR
  •
